Headlight, selective illumination for BMW 7 Series F01 LCI 750dX (2015)

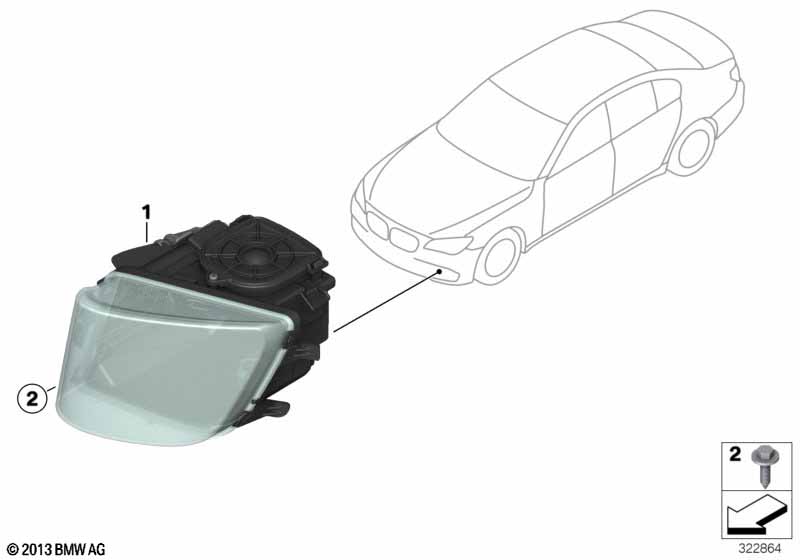

This Headlight, selective illumination technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 750dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlight includes control unit For vehicles with BMW Night Vision with Dynamic Light |
P5A3A=Yes |
||||||||
| 01 | Headlight, selective illumination, left | 1 | 63117494843 | Shop at ECS Tuning | ||||||
| 01 | Headlight, selective illumination, right | 1 | 63117494844 | Shop at ECS Tuning | ||||||
| 02 | Sheet metal screw | 4,8X22 | 2 | 07119905184 | $0.29 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F01 LCI 750dX Headlight, selective illumination?
- This technical diagram illustrates the Headlight, selective illumination within the Lighting group for the 7 Series F01 LCI 750dX produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Headlight, selective illumination, left (Part #63117494843).
- Which models use the hardware listed in this Headlight, selective illumination?
- The hardware and components featured in the Headlight, selective illumination are specific to the 7 Series F01 LCI 750dX produced during 2015. These technical specifications ensure that parts like the Headlight, selective illumination, left (63117494843) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight, selective illumination assembly?
- Each item in the Headlight, selective illumination corresponds to the numbered list below the illustration. For the 7 Series F01 LCI 750dX, you can identify the Headlight, selective illumination, left by locating its position on the schematic, which then links to the official BMW part number 63117494843 for the Lighting section.
