Fog lights LED for BMW 7 Series F02 LCI 730Ld (2015)

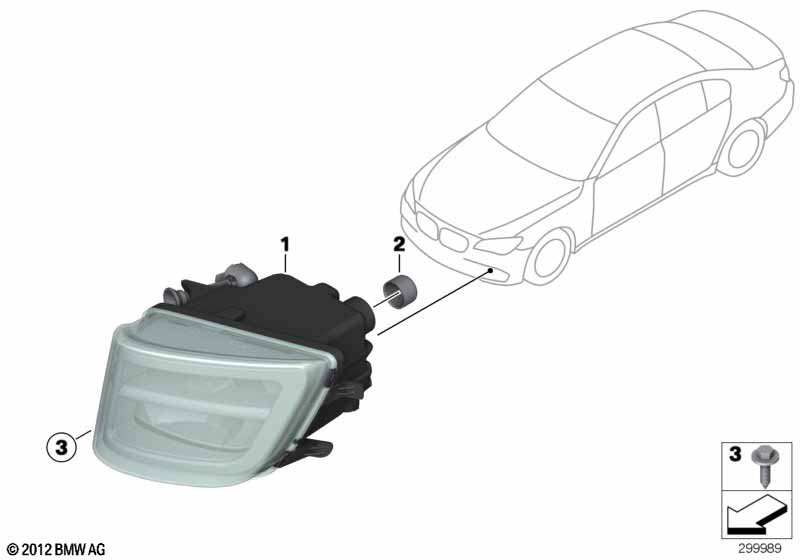

This Fog lights LED technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with LED Fog lights |
S5A1A=Yes |
||||||||
| 01 | Front fog lamp, LED, left | 1 | 63177311287 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177311288 | Shop at ECS Tuning | ||||||
| 02 | Ventilation grommet | 2 | 63176938430 | $8.15 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | 4,8X22 | 2 | 07119905184 | $0.29 | Shop at ECS Tuning | ||||
