Various lamps for BMW MINI F56 LCI One (2024)

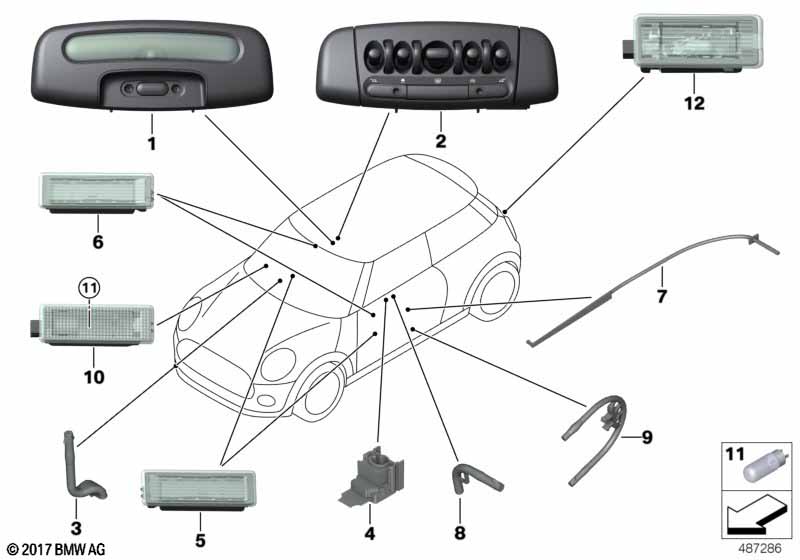

This Various lamps technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof and Ambient interior lighting and Light package |
S402A=No S4URA=No S563A=No |
|||||||||
| 01 | Interior light, front | 1 | 63319263439 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof and Ambient interior lighting |
S402A=No S4URA=Yes |
|||||||||
| 02 | Interior light | HIGH | 1 | 63315A714B9 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Ambient interior lighting |
S402A=Yes S4URA=No |
|||||||||
| 02 | Interior light, front | LOW SHD | 1 | 63319365101 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Ambient interior lighting |
S402A=Yes S4URA=Yes |
|||||||||
| 02 | Interior light | HIGH SHD | 1 | 63315A714C0 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Ambient interior lighting and Light package |
S402A=No S4URA=No S563A=Yes |
|||||||||
| 02 | Interior light, front | LOW | 1 | 63319365100 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting and Light package |
S4URA=Yes S563A=Yes |
|||||||||
| 03 | Optical conductor, radio / IHKA controls | 1 | 63319304045 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting and Light package |
S4URA=Yes S563A=No |
|||||||||
| 03 | Optical conductor, radio / IHKA controls | 1 | 63319304045 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting and Light package |
S4URA=No S563A=Yes |
|||||||||
| 03 | Optical conductor, radio / IHKA controls | 1 | 63319304045 | Shop at ECS Tuning | ||||||
| Centre console | ||||||||||
| 04 | LED module | ORANGE | 1 | 63319343149 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting Outline front left/right |
S4URA=Yes |
|||||||||
| 04 | LED module | GRAU | 4 | 63319891269 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting Door handle front left/right |
S4URA=Yes |
|||||||||
| 04 | LED module | GRAU | 2 | 63319891269 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting Instrument cluster |
S4URA=Yes |
|||||||||
| 05 | LED module | GRAU | 2 | 63319891269 | Shop at ECS Tuning | |||||
| 05 | LED module | VIOLETT | 2 | 63319891270 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting Footwell light front left/right |
S4URA=Yes |
|||||||||
| 05 | LED for interior lamp | 2 | 63319458174 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting and Light package Footwell lamp |
S4URA=No S563A=Yes |
|||||||||
| 05 | LED for interior lamp | HIGH POWER | 2 | 63317941911 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting |
S4URA=Yes |
|||||||||
| 06 | LED for interior lamp | KALTWEISS | 2 | 63319313574 | Shop at ECS Tuning | |||||
| 08 | Optical conductor, door opener | 2 | 63319304049 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting and Light package Glove compartment |
S4URA=Yes S563A=Yes |
|||||||||
| 10 | Interior light | 5W TRÜB | 1 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| For vehicles with Ambient interior lighting and Light package Glove compartment |
S4URA=Yes S563A=No |
|||||||||
| 10 | Interior light | 5W TRÜB | 1 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| For vehicles with Ambient interior lighting and Light package Glove compartment |
S4URA=No S563A=Yes |
|||||||||
| 10 | Interior light | 5W TRÜB | 1 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| 11 | Longlife bulb | 5W | 1 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| Trunk trim panel | ||||||||||
| 12 | Interior light | 8W T10 | 1 | 63319270506 | Shop at ECS Tuning | |||||
