Single parts, headlight LED for BMW X3 F25 35iX

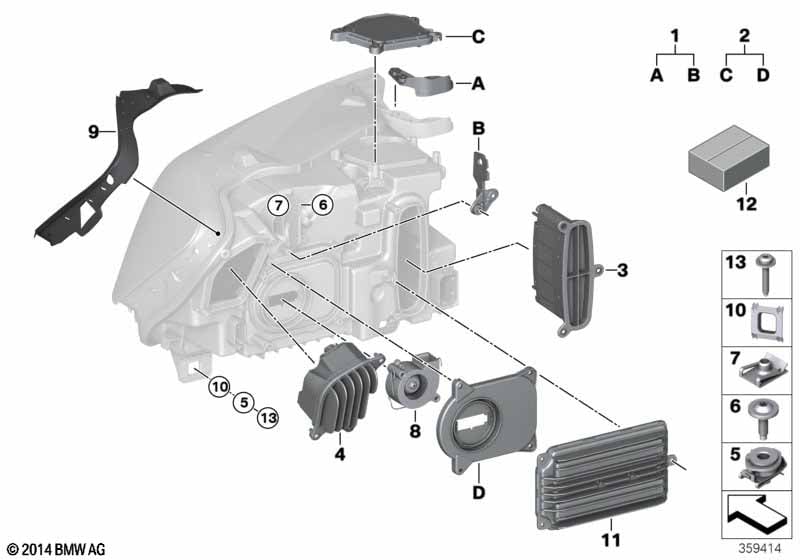

This Single parts, headlight LED technical drawing provides a detailed breakdown of the assembly for the X3 F25 35iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, left headlight | 1 | 04/2014 | 63117401167 | Shop at ECS Tuning | |||||
| 01 | Repair kit, right headlight | 1 | 04/2014 | 63117401168 | Shop at ECS Tuning | |||||
| 02 | Repair kit, cover, LED fan, left | 1 | 04/2014 | 63117401165 | Shop at ECS Tuning | |||||
| 02 | Repair kit for cover, LED fan, right | 1 | 04/2014 | 63117401166 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight |
S552A=Yes |
|||||||||
| 03 | Headlight control module, LED | 2 | 04/2014 | 63117440883 | Shop at ECS Tuning | |||||
| 04 | LED module turn signal left | 1 | 04/2014 | 63117406357 | Shop at ECS Tuning | |||||
| 04 | LED module for turn signal, right | 1 | 04/2014 | 63117406358 | Shop at ECS Tuning | |||||
| 05 | Alignment element | 6 | 04/2014 | 63127280779 | Shop at ECS Tuning | |||||
| 06 | Oval-head screw with washer | ISA M6X21 | 2 | 04/2014 | 07147263759 | Shop at ECS Tuning | ||||
| 07 | C-clip nut | M6-ZNS3 | 6 | 04/2014 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
| 08 | LED display for fan | 2 | 04/2014 | 63117379855 | Shop at ECS Tuning | |||||
| 09 | Gasket, headlight, left | 1 | 04/2014 | 63117392975 | Shop at ECS Tuning | |||||
| 09 | Gasket, headlight, right | 1 | 04/2014 | 63117392976 | Shop at ECS Tuning | |||||
| 10 | Spacer | 4 | 04/2014 | 63117406355 | Shop at ECS Tuning | |||||
| 11 | LED main light module | 2 | 04/2014 | 63117354974 | Shop at ECS Tuning | |||||
| 12 | Set of screws | 1 | 04/2014 | 63117387835 | Shop at ECS Tuning | |||||
| 12 | Set grommets | 1 | 04/2014 | 63117418307 | Shop at ECS Tuning | |||||
| 13 | Countersunk screw | M6X35 | 6 | 04/2014 | 07119907286 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X3 F25 35iX Single parts, headlight LED?
- This technical diagram illustrates the Single parts, headlight LED within the Lighting group for the X3 F25 35iX. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit, left headlight (Part #63117401167).
- Which models use the hardware listed in this Single parts, headlight LED?
- The hardware and components featured in the Single parts, headlight LED are specific to the X3 F25 35iX. These technical specifications ensure that parts like the Repair kit, left headlight (63117401167) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, headlight LED assembly?
- Each item in the Single parts, headlight LED corresponds to the numbered list below the illustration. For the X3 F25 35iX, you can identify the Repair kit, left headlight by locating its position on the schematic, which then links to the official BMW part number 63117401167 for the Lighting section.
