Individual parts for headlamp, halogen for BMW X3 F25 35iX

This Individual parts for headlamp, halogen technical drawing provides a detailed breakdown of the assembly for the X3 F25 35iX. It includes part names, part numbers and all associated mounting hardware.

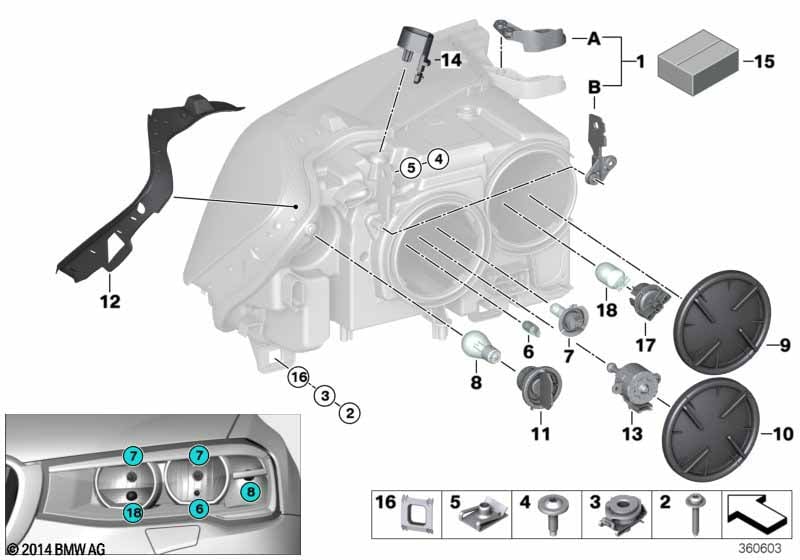

Individual parts for headlamp, halogen
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit, left headlight 1 04/2014 63117401167 Shop at ECS Tuning
01 Repair kit, right headlight 1 04/2014 63117401168 Shop at ECS Tuning
02 Countersunk screw M6X35 6 04/2014 07119907286 Shop at ECS Tuning
03 Alignment element 6 04/2014 63127280779 Shop at ECS Tuning
04 Oval-head screw with washer ISA M6X21 2 04/2014 07147263759 Shop at ECS Tuning
05 C-clip nut M6-ZNS3 6 04/2014 51127070202 $1.00 Shop at ECS Tuning
06 Longlife bulb 5W 4 04/2014 63217160797 $1.96 Shop at ECS Tuning
07 Longlife bulb 12V 55W H7 2 04/2014 63217160781 $20.90 Shop at ECS Tuning
08 Bulb silver 12V 21W 2 04/2014 63217160897 $19.40 Shop at ECS Tuning
08 Bulb yellow PY21W/12V/21W 2 04/2014 63217160791 $5.58 Shop at ECS Tuning
09 Covering cap 2 04/2014 63117379846 Shop at ECS Tuning
10 Lamp cover low beam 2 04/2014 63127270076 Shop at ECS Tuning
11 Bulb socket, turn indicator 2 04/2014 63117287863 Shop at ECS Tuning
12 Gasket, headlight, left 2 04/2014 63117392975 Shop at ECS Tuning
12 Gasket, headlight, right 2 04/2014 63117392976 Shop at ECS Tuning
13 Head light vertical aim control 2 04/2014 63117046049 $76.77 Shop at ECS Tuning
14 Plug 2 04/2014 63117369154 Shop at ECS Tuning
15 Set of screws 1 04/2014 63117387835 Shop at ECS Tuning
15 Set grommets 1 04/2014 63117418307 Shop at ECS Tuning
16 Spacer 4 04/2014 63117406355 Shop at ECS Tuning
17 Bulb socket, daytime running lights 2 04/2014 63117401129 Shop at ECS Tuning
18 Bulb 12V 21W 2 04/2014 07119905328 $25.94 Shop at ECS Tuning
