Single parts, headlight LED for BMW 2 Series F45 Active Tourer 216i (2015)

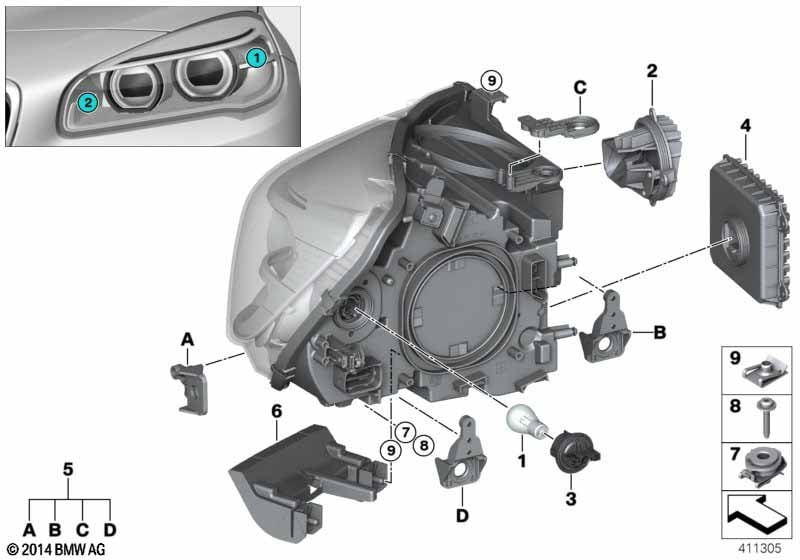

This Single parts, headlight LED technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 216i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb silver | 12V 21W | 2 | 63217160897 | $19.40 | Shop at ECS Tuning | ||||
| 02 | LED module for cornering light, left | 1 | 63117391399 | Shop at ECS Tuning | ||||||
| 02 | LED module for cornering light, right | 1 | 63117391400 | Shop at ECS Tuning | ||||||
| 03 | Bulb socket | PY21W | 2 | 63117391393 | Shop at ECS Tuning | |||||
| 04 | Control unit for front light electronics | 2 | 63117492089 | Shop at ECS Tuning | ||||||
| 05 | Set of repair holders | 1 | 63117391394 | Shop at ECS Tuning | ||||||
| 06 | Bracket headlight left | 1 | 63117391395 | Shop at ECS Tuning | ||||||
| 06 | Bracket headlight right | 1 | 63117391396 | Shop at ECS Tuning | ||||||
| 07 | Alignment element | 4 | 63127280779 | Shop at ECS Tuning | ||||||
| 08 | Countersunk screw | M6X35 | 8 | 07119908008 | Shop at ECS Tuning | |||||
| 09 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 216i Single parts, headlight LED?
- This technical diagram illustrates the Single parts, headlight LED within the Lighting group for the 2 Series F45 Active Tourer 216i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Bulb silver (Part #63217160897).
- Which models use the hardware listed in this Single parts, headlight LED?
- The hardware and components featured in the Single parts, headlight LED are specific to the 2 Series F45 Active Tourer 216i produced during 2015. These technical specifications ensure that parts like the Bulb silver (63217160897) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, headlight LED assembly?
- Each item in the Single parts, headlight LED corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 216i, you can identify the Bulb silver by locating its position on the schematic, which then links to the official BMW part number 63217160897 for the Lighting section.
