Side marker light / reflector for BMW 2 Series F45 Active Tourer 225i (2016)

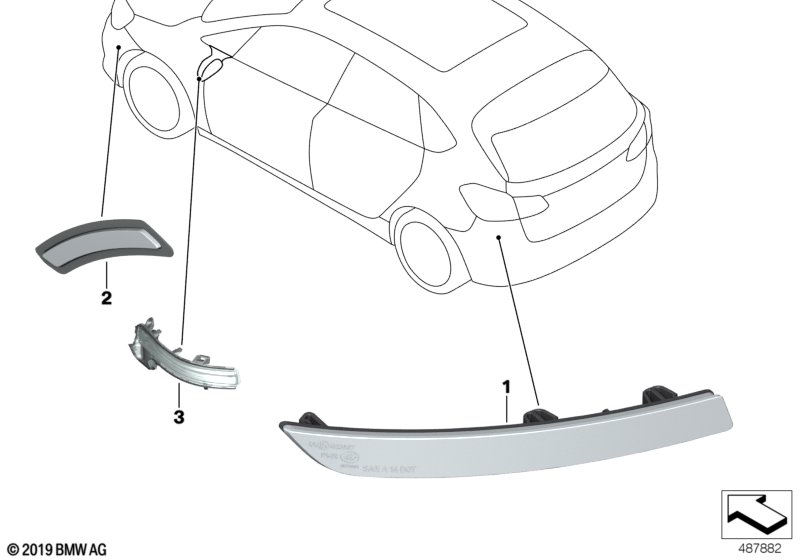

This Side marker light / reflector technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Reflector, rear left | 1 | 63147850601 | Shop at ECS Tuning | ||||||
| 01 | Reflector, rear right | 1 | 63147850602 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 03 | Additional turn indicator lamp, left | CHINA | 1 | 63137377963 | Shop at ECS Tuning | |||||
| 03 | Additional turn indicator lamp, right | CHINA | 1 | 63137377964 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 03 | Additional turn indicator lamp, left | 1 | 51167493897 | Shop at ECS Tuning | ||||||
| 03 | Additional turn indicator lamp, right | 1 | 51167493898 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 225i Side marker light / reflector?
- This technical diagram illustrates the Side marker light / reflector within the Lighting group for the 2 Series F45 Active Tourer 225i produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Reflector, rear left (Part #63147850601).
- Which models use the hardware listed in this Side marker light / reflector?
- The hardware and components featured in the Side marker light / reflector are specific to the 2 Series F45 Active Tourer 225i produced during 2016. These technical specifications ensure that parts like the Reflector, rear left (63147850601) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side marker light / reflector assembly?
- Each item in the Side marker light / reflector corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 225i, you can identify the Reflector, rear left by locating its position on the schematic, which then links to the official BMW part number 63147850601 for the Lighting section.
