Individual parts for headlamp, halogen for BMW 1 Series F21 LCI 118i (2015)

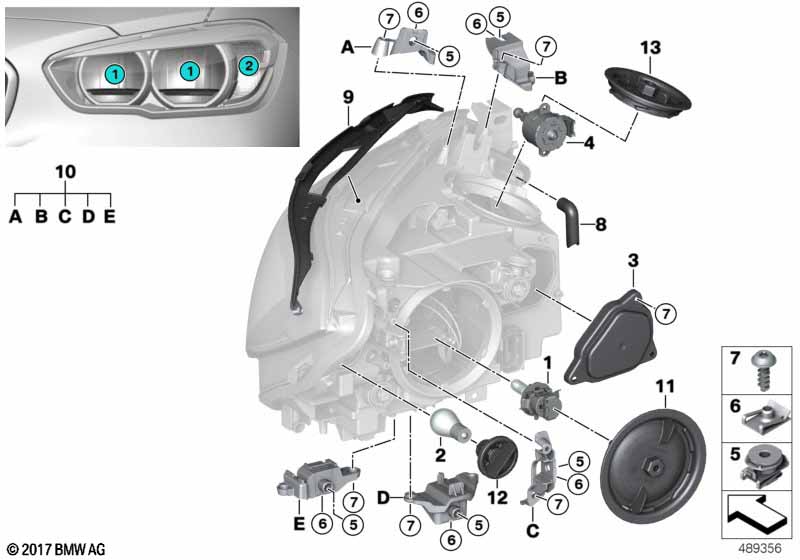

This Individual parts for headlamp, halogen technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with LED headlight |
S5A2A=No |
||||||||
| 01 | Bulb | H7/55W | 4 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 01 | Longlife bulb | 12V 55W H7 | 4 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 02 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 03 | Repair kit for daytime driving lights | 2 | 63117428426 | Shop at ECS Tuning | ||||||
| 05 | Alignment element | 4 | 63127280779 | Shop at ECS Tuning | ||||||
| 06 | C-clip nut | M6-ZNS3 | 6 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | ISA 4X14MM | X | 51167072159 | $0.33 | Shop at ECS Tuning | ||||
| 08 | Set grommets | 1 | 63117428418 | Shop at ECS Tuning | ||||||
| 09 | Set of seals | 1 | 63117428423 | Shop at ECS Tuning | ||||||
| 10 | Repair holder, left | 1 | 63117428431 | Shop at ECS Tuning | ||||||
| 10 | Repair holder, right | 1 | 63117428432 | Shop at ECS Tuning | ||||||
| 11 | Cap | 2 | 63117348932 | Shop at ECS Tuning | ||||||
| 12 | Bulb socket, turn indicator | 2 | 63126916102 | $8.58 | Shop at ECS Tuning | |||||
| 13 | Cap | 2 | 63117414153 | Shop at ECS Tuning | ||||||
