Rear light for BMW 1 Series F21 LCI 116i (2017)

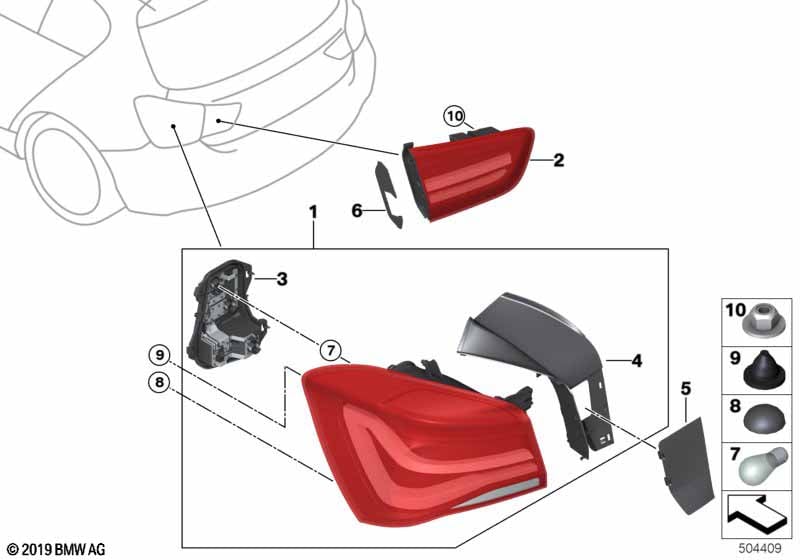

This Rear light technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 07/2017 | 63217359017 | Shop at ECS Tuning | |||||
| Observe Service Information Bulletin 55712456 -02! |
||||||||||
| 01 | Rear light in the side panel, right | 1 | 07/2017 | 63217359018 | Shop at ECS Tuning | |||||
| Observe Service Information Bulletin 55712456 -02! |
||||||||||
| 02 | Rear light in trunk lid, left | 1 | 07/2017 | 63217359019 | Shop at ECS Tuning | |||||
| 02 | Rear light in trunk lid, right | 1 | 07/2017 | 63217359020 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, left | 1 | 63217424495 | Shop at ECS Tuning | ||||||
| 03 | bulb socket, right | 1 | 63217424496 | Shop at ECS Tuning | ||||||
| 04 | Trim, drip rail, left | 1 | 63217424493 | Shop at ECS Tuning | ||||||
| 04 | Trim, drip rail, right | 1 | 63217424494 | Shop at ECS Tuning | ||||||
| 05 | Trim cover for driprail, left | 1 | 63217387283 | Shop at ECS Tuning | ||||||
| 05 | Trim cover for driprail, right | 1 | 63217387284 | Shop at ECS Tuning | ||||||
| 06 | Set of covers | 1 | 63217435200 | Shop at ECS Tuning | ||||||
| 07 | Longlife bulb | P21W/12V/21W | 6 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Bulb yellow | PY21W/12V/21W | 6 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 08 | Rubber buffer | 4 | 54347166771 | $0.44 | Shop at ECS Tuning | |||||
| 09 | Snap-lock coupling | 4 | 07147306640 | Shop at ECS Tuning | ||||||
| 10 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
