Single components for headlight for BMW 6 Series F13 LCI 640i (2017)

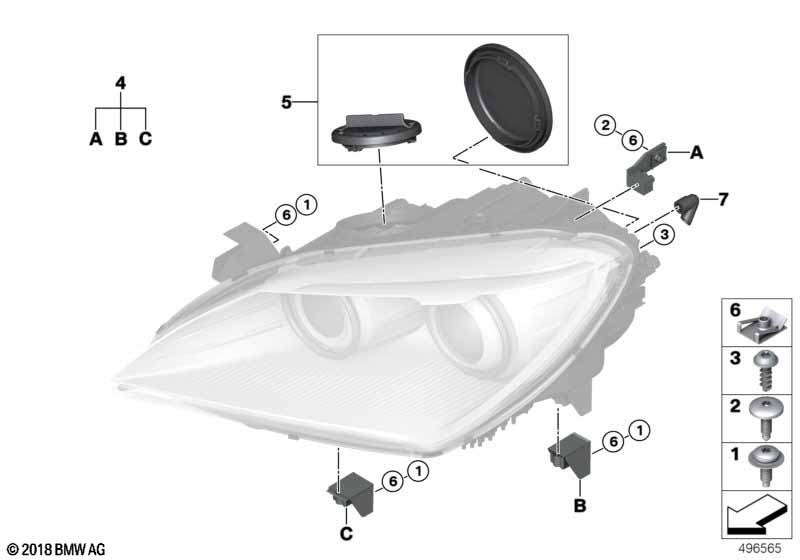

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 LCI 640i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oval-head screw with washer | 6 | 07147212669 | $1.16 | Shop at ECS Tuning | |||||
| 02 | Combi oval-head machine screw | 2 | 11119143167 | Shop at ECS Tuning | ||||||
| 03 | Set of screws | 1 | 63117387835 | Shop at ECS Tuning | ||||||
| 04 | Repair kit, left headlight | 2 | 63127277519 | Shop at ECS Tuning | ||||||
| 04 | Repair kit, right headlight | 2 | 63127277520 | Shop at ECS Tuning | ||||||
| 05 | Set of headlight covers | 2 | 63117453907 | Shop at ECS Tuning | ||||||
| 06 | Set of sheet metal nuts | 2 | 63117440167 | Shop at ECS Tuning | ||||||
| 07 | Set grommets | 1 | 63117440165 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F13 LCI 640i Single components for headlight?
- This technical diagram illustrates the Single components for headlight within the Lighting group for the 6 Series F13 LCI 640i produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Oval-head screw with washer (Part #07147212669).
- Which models use the hardware listed in this Single components for headlight?
- The hardware and components featured in the Single components for headlight are specific to the 6 Series F13 LCI 640i produced during 2017. These technical specifications ensure that parts like the Oval-head screw with washer (07147212669) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single components for headlight assembly?
- Each item in the Single components for headlight corresponds to the numbered list below the illustration. For the 6 Series F13 LCI 640i, you can identify the Oval-head screw with washer by locating its position on the schematic, which then links to the official BMW part number 07147212669 for the Lighting section.
