Electronic parts, headlight, LED for BMW 6 Series F12 LCI 650i (2018)

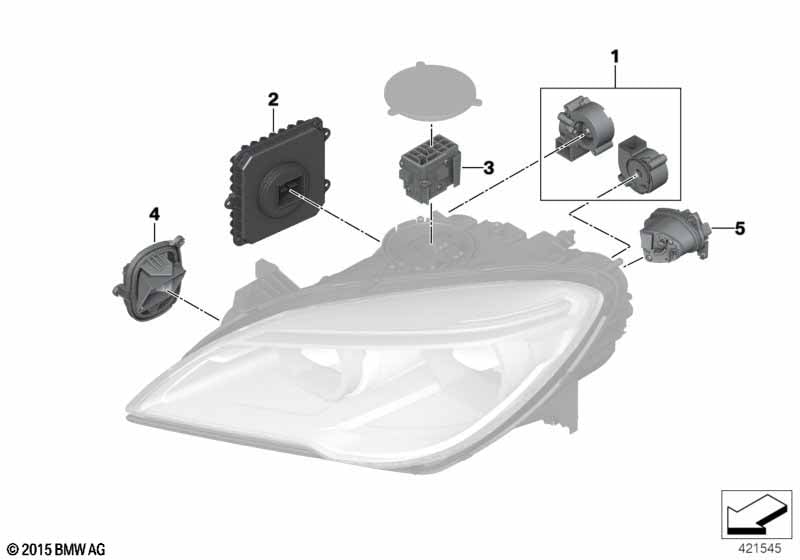

This Electronic parts, headlight, LED technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set, fan | 2 | 63117394899 | Shop at ECS Tuning | ||||||
| 02 | Control unit for front light electronics | 2 | 63117429928 | ENDED | Shop at ECS Tuning | |||||
| 02 | Control unit for front light electronics | 2 | 63118494839 | Shop at ECS Tuning | ||||||
| 03 | LED daytime driving light module, left | 1 | 63117394901 | Shop at ECS Tuning | ||||||
| 03 | LED daytime driving light module, right | 1 | 63117394902 | Shop at ECS Tuning | ||||||
| 04 | LED Cornering light module, left | 1 | 63117394903 | Shop at ECS Tuning | ||||||
| 04 | LED Cornering light module, right | 1 | 63117394904 | Shop at ECS Tuning | ||||||
| 05 | LED module turn signal left | 2 | 63117394905 | Shop at ECS Tuning | ||||||
| 05 | LED module for turn signal, right | 2 | 63117394906 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F12 LCI 650i Electronic parts, headlight, LED?
- This technical diagram illustrates the Electronic parts, headlight, LED within the Lighting group for the 6 Series F12 LCI 650i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Set, fan (Part #63117394899).
- Which models use the hardware listed in this Electronic parts, headlight, LED?
- The hardware and components featured in the Electronic parts, headlight, LED are specific to the 6 Series F12 LCI 650i produced during 2018. These technical specifications ensure that parts like the Set, fan (63117394899) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electronic parts, headlight, LED assembly?
- Each item in the Electronic parts, headlight, LED corresponds to the numbered list below the illustration. For the 6 Series F12 LCI 650i, you can identify the Set, fan by locating its position on the schematic, which then links to the official BMW part number 63117394899 for the Lighting section.
