Single components for headlight for BMW 7 Series G12 730LdX (2019)

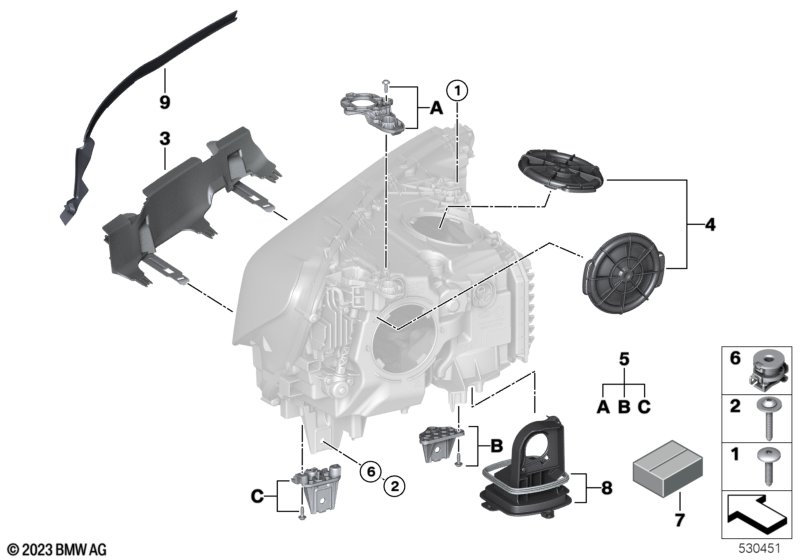

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lens screw with base | M6 X19 | 4 | 07149353144 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | M6 X 46 | 4 | 07147401706 | Shop at ECS Tuning | |||||
| 03 | Set of retainers for headlight, left | 1 | 63117440355 | Shop at ECS Tuning | ||||||
| 03 | Set of retainers for headlight, right | 1 | 63117440356 | Shop at ECS Tuning | ||||||
| 04 | Set of headlight covers | 1 | 63117440357 | Shop at ECS Tuning | ||||||
| 05 | Repair kit headlight | 1 | 63117440362 | Shop at ECS Tuning | ||||||
| 06 | Spacer | 4 | 63117419740 | Shop at ECS Tuning | ||||||
| 07 | Set of screws | 1 | 63117440363 | Shop at ECS Tuning | ||||||
| See below for content information | ||||||||||
| For vehicles with BMW Laserlicht |
S5AZA=Yes |
|||||||||
| 08 | Set of headlight covers | 1 | 63117440354 | Shop at ECS Tuning | ||||||
| 09 | Gasket, headlight, left | 1 | 63117408723 | Shop at ECS Tuning | ||||||
| 09 | Gasket, headlight, right | 1 | 63117408724 | Shop at ECS Tuning | ||||||
