Headlight for BMW 7 Series G12 740LeX (2019)

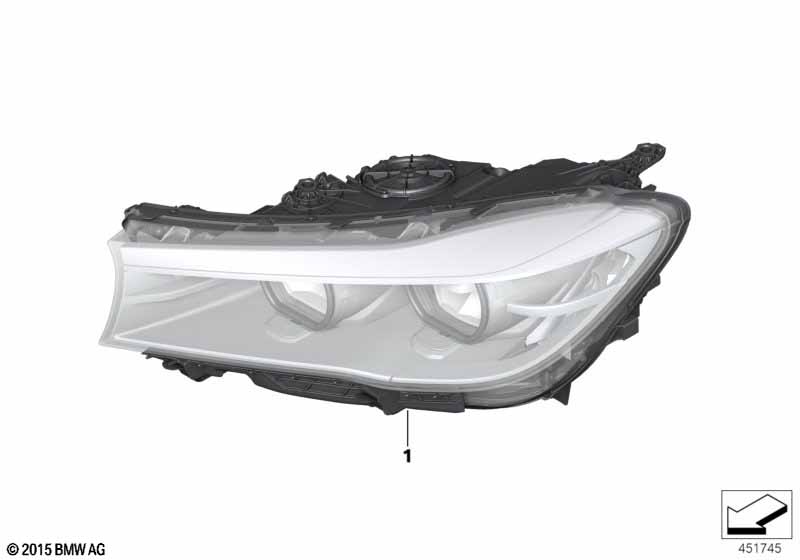

This Headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LeX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights do not include control units. |
|||||||||
| Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
||||||||||
| 01 | Headlight, LED technology, left | 1 | 63117408719 | Shop at ECS Tuning | ||||||
| 01 | Headlight with LED technology, right | 1 | 63117408720 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive Headlights Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S524A=Yes |
|||||||||
| 01 | Headlight, LED, AHL, left | 1 | 63117408715 | Shop at ECS Tuning | ||||||
| 01 | Headlight, LED, AHL, right | 1 | 63117408716 | Shop at ECS Tuning | ||||||
| For vehicles with Country-spec.ctrl Hong Kong/Macao 04142 Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S8LHA=Yes |
|||||||||
| 01 | Headlight, LED technology, left | 1 | 63117408717 | Shop at ECS Tuning | ||||||
| 01 | Headlight with LED technology, right | 1 | 63117408718 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S552A=Yes |
|||||||||
| 01 | Headlight, LED, AHL, high, left | ICON LIGHT | 1 | 63117408709 | Shop at ECS Tuning | |||||
| 01 | Headlight, LED, AHL, high, right | ICON LIGHT | 1 | 63117408710 | Shop at ECS Tuning | |||||
| For vehicles with BMW Laserlicht Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S5AZA=Yes |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63117408703 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63117408704 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S552A=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, LED, AHL, high, left | ICON LIGHT | 1 | 63117408707 | Shop at ECS Tuning | |||||
| 01 | Headlight, LED, AHL, high, right | ICON LIGHT | 1 | 63117408708 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights and Country-spec.ctrl Hong Kong/Macao 04142 Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S524A=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, LED, AHL, left | 1 | 63117408713 | Shop at ECS Tuning | ||||||
| 01 | Headlight, LED, AHL, right | 1 | 63117408714 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
S5AZA=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63117408701 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63117408702 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and BMW Laserlicht Not included with headlight: Control unit Frontal Light Electronics LED turn signal module LED module daytime driving lights |
L8AAA=Yes S5AZA=Yes |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63117451855 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63117451856 | Shop at ECS Tuning | ||||||
