Electronic components for headlight for BMW 7 Series G12 725Ld (2017)

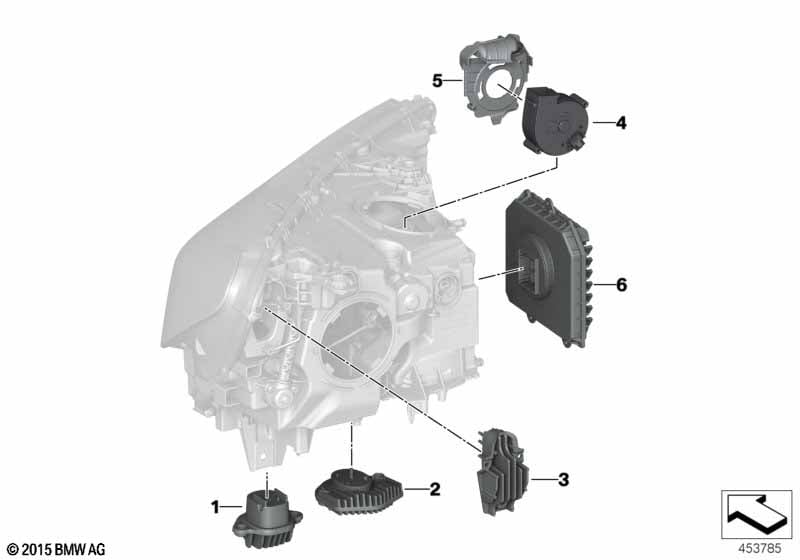

This Electronic components for headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 725Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Adaptive LED headlight or BMW Laserlicht |
S552A=Yes S5AZA=Yes |
|||||||||
| 01 | LED module for daytime driving lights | 1 | 63117440360 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight and BMW Laserlicht |
S552A=No S5AZA=No |
|||||||||
| 02 | LED module for daytime driving lights | 1 | 63117440361 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight or BMW Laserlicht |
S552A=Yes S5AZA=Yes |
|||||||||
| 03 | LED module turn signal | 1 | 63117440359 | Shop at ECS Tuning | ||||||
| 04 | LED display for fan | 4 | 63117408686 | Shop at ECS Tuning | ||||||
| 05 | Fan cover | 2 | 63117408684 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 06 | Control unit for front light electronics | 2 | 63117472763 | ENDED | Shop at ECS Tuning | |||||
| 06 | Control unit for front light electronics | 2 | 63117472771 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight or BMW Laserlicht |
S552A=Yes S5AZA=Yes |
|||||||||
| 06 | Control unit for front light electronics | FLM 01 | 2 | 63115A02730 | Shop at ECS Tuning | |||||
| 06 | Control unit for front light electronics | 2 | 63117463516 | ENDED | Shop at ECS Tuning | |||||
| 06 | Control unit for front light electronics | 2 | 63117472767 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Adaptive Headlights and Adaptive LED headlight and BMW Laserlicht |
S524A=No S552A=No S5AZA=No |
|||||||||
| 06 | Control unit for front light electronics | 2 | 63117472763 | ENDED | Shop at ECS Tuning | |||||
| 06 | Control unit for front light electronics | 2 | 63117472771 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
