Fog lights for BMW 7 Series G11 750dX (2019)

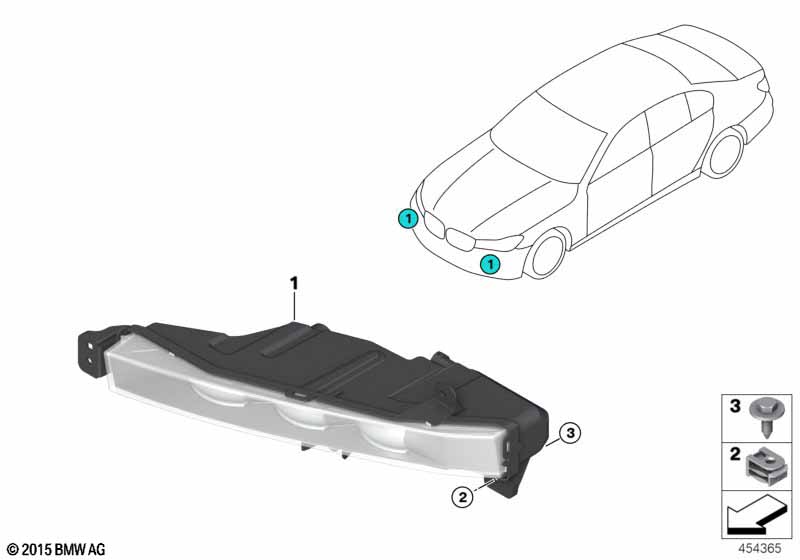

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 750dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front fog lamp, LED, left | 1 | 63177342953 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177342954 | Shop at ECS Tuning | ||||||
| 02 | C-clip for plastic nut | TS5 | 6 | 07147311312 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | TS5X17 SW8 D=16 | 6 | 07149126885 | $0.49 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 750dX Fog lights?
- This technical diagram illustrates the Fog lights within the Lighting group for the 7 Series G11 750dX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Front fog lamp, LED, left (Part #63177342953).
- Which models use the hardware listed in this Fog lights?
- The hardware and components featured in the Fog lights are specific to the 7 Series G11 750dX produced during 2019. These technical specifications ensure that parts like the Front fog lamp, LED, left (63177342953) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lights assembly?
- Each item in the Fog lights corresponds to the numbered list below the illustration. For the 7 Series G11 750dX, you can identify the Front fog lamp, LED, left by locating its position on the schematic, which then links to the official BMW part number 63177342953 for the Lighting section.
