Fog lights for BMW 4 Series F33 435i (2016)

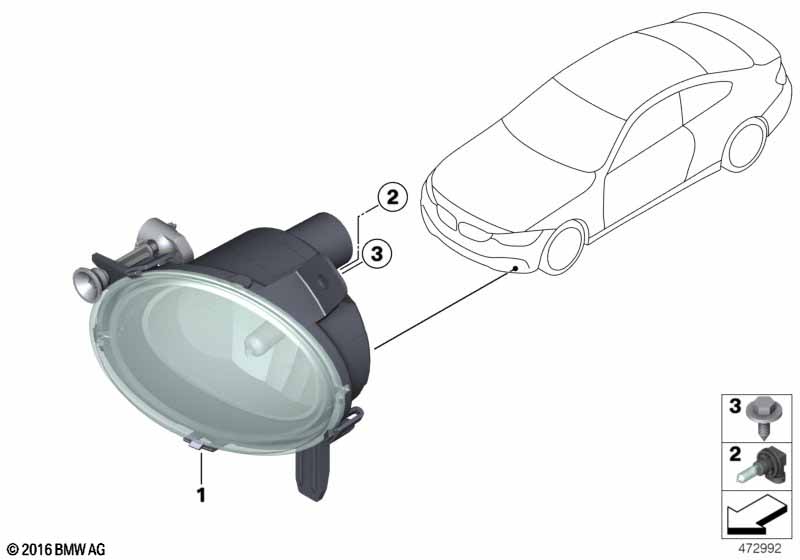

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 435i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package and M Sport brakes and Adaptive LED headlight |
P337A=Yes S2NHA=No S552A=No |
|||||||||
| 01 | Fog lights, left | 1 | 63177248911 | +core | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 63177248912 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Sport brakes and Adaptive LED headlight |
P337A=No S2NHA=Yes S552A=No |
|||||||||
| 01 | Fog lights, left | 1 | 63177248911 | +core | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 63177248912 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Sport brakes and Adaptive LED headlight |
P337A=No S2NHA=No S552A=No |
|||||||||
| 01 | Fog lights, left | 1 | 63177248911 | +core | Shop at ECS Tuning | |||||
| 01 | Fog lights, right | 1 | 63177248912 | +core | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Sport brakes and Xenon Light and Adaptive Headlights and Adaptive LED headlight |
P337A=Yes S2NHA=No S522A=No S524A=No S552A=Yes |
|||||||||
| 01 | Front fog lamp, LED, left | 1 | 63177315559 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177315560 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and M Sport brakes and Xenon Light and Adaptive Headlights and Adaptive LED headlight |
P337A=No S2NHA=Yes S522A=No S524A=No S552A=Yes |
|||||||||
| 01 | Front fog lamp, LED, left | 1 | 63177315559 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177315560 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and M Sport brakes and Xenon Light and Adaptive Headlights and Adaptive LED headlight |
P337A=No S2NHA=No S522A=No S524A=No S552A=Yes |
|||||||||
| 01 | Front fog lamp, LED, left | 1 | 63177315559 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177315560 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and M Sport brakes and Adaptive LED headlight |
P337A=Yes S2NHA=No S552A=No |
|||||||||
| 02 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Sport brakes and Adaptive LED headlight |
P337A=No S2NHA=Yes S552A=No |
|||||||||
| 02 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and M Sport brakes and Adaptive LED headlight |
P337A=No S2NHA=No S552A=No |
|||||||||
| 02 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
