Auxiliary turn signal lamp/s outer for BMW 5 Series G30 530iX (2020)

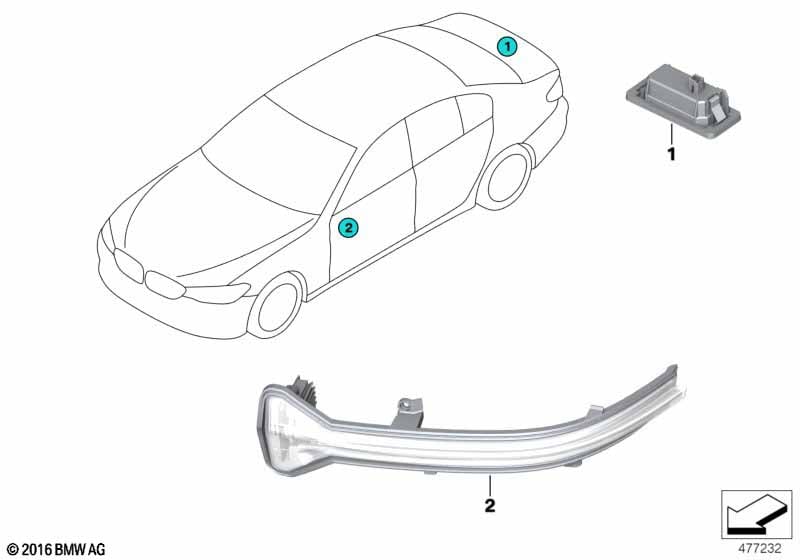

This Auxiliary turn signal lamp/s outer technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Registration plate light | 2 | 63267410302 | Shop at ECS Tuning | ||||||
| 02 | Turn signal lamp ex.rearview mirror left | 1 | 51167414649 | Shop at ECS Tuning | ||||||
| 02 | Turn signal lamp ex.rearview mirror ri. | 1 | 51167414650 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 530iX Auxiliary turn signal lamp/s outer?
- This technical diagram illustrates the Auxiliary turn signal lamp/s outer within the Lighting group for the 5 Series G30 530iX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Registration plate light (Part #63267410302).
- Which models use the hardware listed in this Auxiliary turn signal lamp/s outer?
- The hardware and components featured in the Auxiliary turn signal lamp/s outer are specific to the 5 Series G30 530iX produced during 2020. These technical specifications ensure that parts like the Registration plate light (63267410302) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Auxiliary turn signal lamp/s outer assembly?
- Each item in the Auxiliary turn signal lamp/s outer corresponds to the numbered list below the illustration. For the 5 Series G30 530iX, you can identify the Registration plate light by locating its position on the schematic, which then links to the official BMW part number 63267410302 for the Lighting section.
