Headlight for BMW MINI Countryman F60 One (2020)

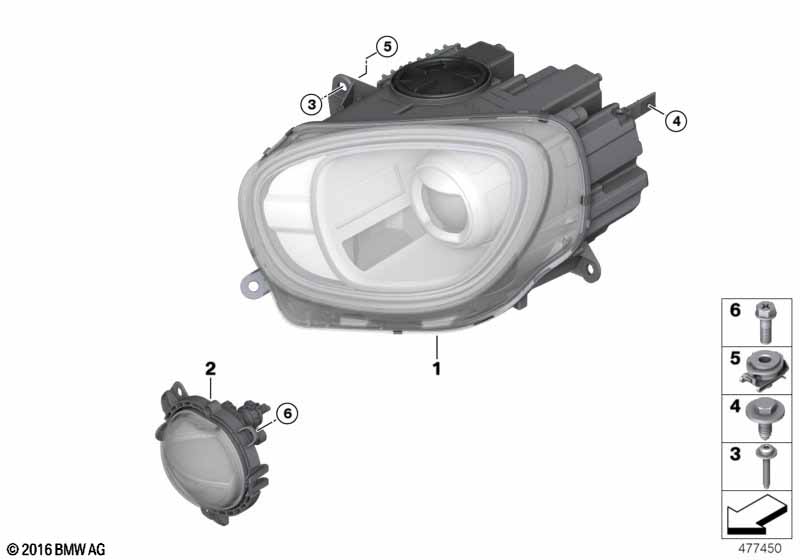

This Headlight technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights do not include control units. |
|||||||||
| For vehicles with LED headlight with expanded content |
S5A4A=Yes |
|||||||||
| 01 | Headlight, LED technology, left | 1 | 63117441315 | Shop at ECS Tuning | ||||||
| 01 | Headlight with LED technology, right | 1 | 63117441316 | Shop at ECS Tuning | ||||||
| For vehicles with LED headlight with expanded content |
S5A4A=No |
|||||||||
| 01 | Headlight left | 1 | 63117390149 | Shop at ECS Tuning | ||||||
| 01 | Headlight right | 1 | 63117390150 | Shop at ECS Tuning | ||||||
| For vehicles with LED Fog lights and LED headlight with expanded content |
S5A1A=Yes S5A4A=Yes |
|||||||||
| 02 | Headlight, bumper, left | 1 | 07/2019 | 63117497773 | Shop at ECS Tuning | |||||
| 02 | Headlight, bumper, right | 1 | 07/2019 | 63117497774 | Shop at ECS Tuning | |||||
| For vehicles with LED Fog lights and LED headlight with expanded content |
S5A1A=No S5A4A=No |
|||||||||
| 02 | Headlight, bumper, left | 1 | 07/2019 | 63117497769 | Shop at ECS Tuning | |||||
| 02 | Headlight, bumper, right | 1 | 07/2019 | 63117497770 | Shop at ECS Tuning | |||||
| For vehicles with LED Fog lights and LED headlight with expanded content |
S5A1A=Yes S5A4A=No |
|||||||||
| 02 | Headlight, bumper, left | 1 | 07/2019 | 63117497771 | Shop at ECS Tuning | |||||
| 02 | Headlight, bumper, right | 1 | 07/2019 | 63117497772 | Shop at ECS Tuning | |||||
| 03 | Countersunk screw | M6X35 | 6 | 07119908719 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| 05 | Alignment element | 6 | 07149310339 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt | 6 | 07149387354 | Shop at ECS Tuning | ||||||
