Interior lights for door for BMW 5 Series G30 540i (2020)

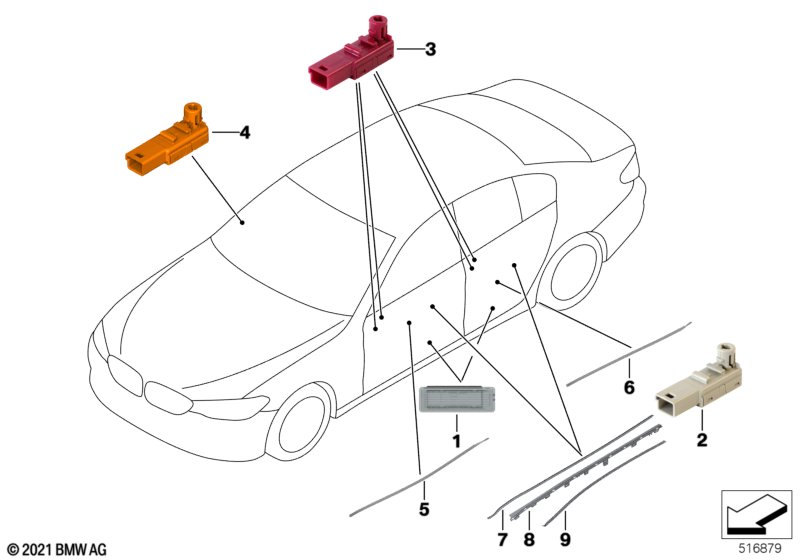

This Interior lights for door technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Door trim panel underside | ||||||||||
| 01 | LED for interior lamp | KALTWEISS | 4 | 63319313574 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting Contour line door |
S4URA=Yes |
|||||||||
| 02 | LED module | GRAU | 4 | 63319891269 | Shop at ECS Tuning | |||||
| For vehicles with Ambient interior lighting |
S4URA=Yes |
|||||||||
| 03 | LED module | VIOLETT | 8 | 63319891270 | Shop at ECS Tuning | |||||
| 05 | Fiber-optic cable, door pocket, front LT | 1 | 63319329999 | Shop at ECS Tuning | ||||||
| 05 | Fiber optic cable, door pocket, front RT | 1 | 63319330000 | Shop at ECS Tuning | ||||||
| 06 | Fiber-optic cable door pocket, rear LT | 1 | 63319330001 | Shop at ECS Tuning | ||||||
| 06 | Fiber-optic cable, door pocket, rear RT | 1 | 63319330002 | Shop at ECS Tuning | ||||||
| 07 | Fiber-optic cable outline door front LT | 1 | 63319335183 | Shop at ECS Tuning | ||||||
| 07 | Fiber-optic cable outline door front RT | 1 | 63319335184 | Shop at ECS Tuning | ||||||
| 07 | Fiber optic cbl.outline, door, rear LT | 1 | 63319335185 | Shop at ECS Tuning | ||||||
| 07 | Fiber-opt.cable outline door rear right | 1 | 63319335186 | Shop at ECS Tuning | ||||||
| 08 | Headlight diffuser outline rear door L | 1 | 63319335187 | Shop at ECS Tuning | ||||||
| 08 | Headlight diffuser outline rear door R | 1 | 63319335188 | Shop at ECS Tuning | ||||||
| 08 | Lens, Contour Line door, left front | 1 | 63319335189 | Shop at ECS Tuning | ||||||
| 08 | Headlight lens cont.line fr.door right | 1 | 63319335190 | Shop at ECS Tuning | ||||||
