Turn signal/side marker light for BMW MINI Coupé R58 Cooper

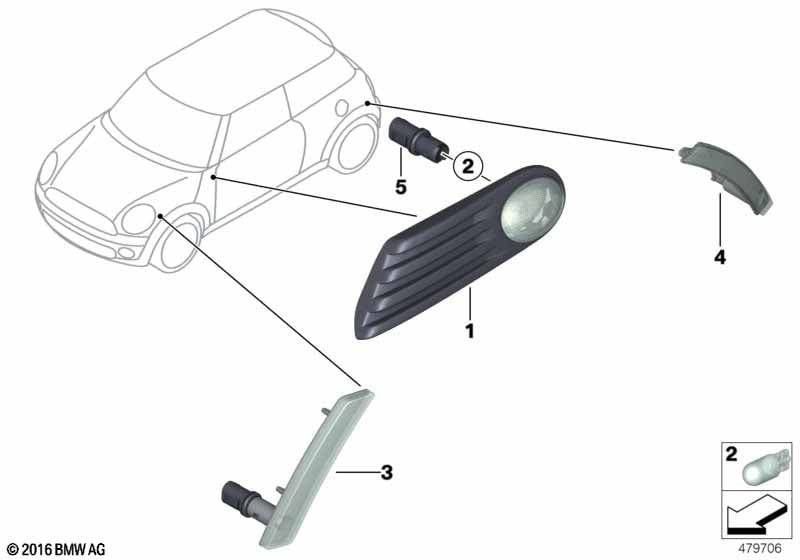

This Turn signal/side marker light technical drawing provides a detailed breakdown of the assembly for the MINI Coupé R58 Cooper. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with MINI Yours |
S3BYA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 03/2012 | 63137292765 | Shop at ECS Tuning | |||||
| 01 | Additional turn indicator lamp, right | 1 | 03/2012 | 63137292766 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours and White direction indicator lights |
S3BYA=No S785A=No |
|||||||||
| 01 | Auxiliary flasher, yellow, left | 1 | 63137260201 | Shop at ECS Tuning | ||||||
| 01 | Auxiliary flasher, yellow, right | 1 | 63137260202 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Yours and White direction indicator lights |
S3BYA=No S785A=Yes |
|||||||||
| 01 | Addit. turn indicator lamp, left white | 1 | 63137260203 | Shop at ECS Tuning | ||||||
| 01 | Addit. turn indicator lamp, right white | 1 | 63137260204 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Yours hood stripe Soda schwarz and MINI Yours |
S3BKA=Yes S3BYA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | YOURS SCHWARZ | 1 | 03/2012 | 63137292769 | Shop at ECS Tuning | ||||
| 01 | Additional turn indicator lamp, right | YOURS SCHWARZ | 1 | 03/2012 | 63137292770 | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours hood stripes 'Soda' and MINI Yours hood stripe Soda schwarz and MINI Yours |
S3BAA=No S3BKA=No S3BYA=Yes |
|||||||||
| 01 | Additional turn indicator lamp, left | 1 | 03/2012 | 63137292765 | Shop at ECS Tuning | |||||
| 01 | Additional turn indicator lamp, right | 1 | 03/2012 | 63137292766 | Shop at ECS Tuning | |||||
| 02 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours or White direction indicator lights |
S3BYA=Yes S785A=Yes |
|||||||||
| 02 | Bulb yellow | 12V 5W | 2 | 63217160798 | $2.96 | Shop at ECS Tuning | ||||
| 03 | Side marker light, front, left | 1 | 63132751331 | $23.46 | Shop at ECS Tuning | |||||
| 03 | Side marker light, front, right | 1 | 63132751332 | $23.46 | Shop at ECS Tuning | |||||
| 04 | Side marker light, rear, left | 1 | 63132751333 | $23.46 | Shop at ECS Tuning | |||||
| 04 | Side marker light, rear, right | 1 | 63132751334 | $23.46 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=No |
|||||||||
| 05 | Bulb socket | 6 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 05 | Bulb socket | 6 | 63137298582 | Shop at ECS Tuning | ||||||
