Various lamps for BMW 4 Series F32 LCI 430i (2020)

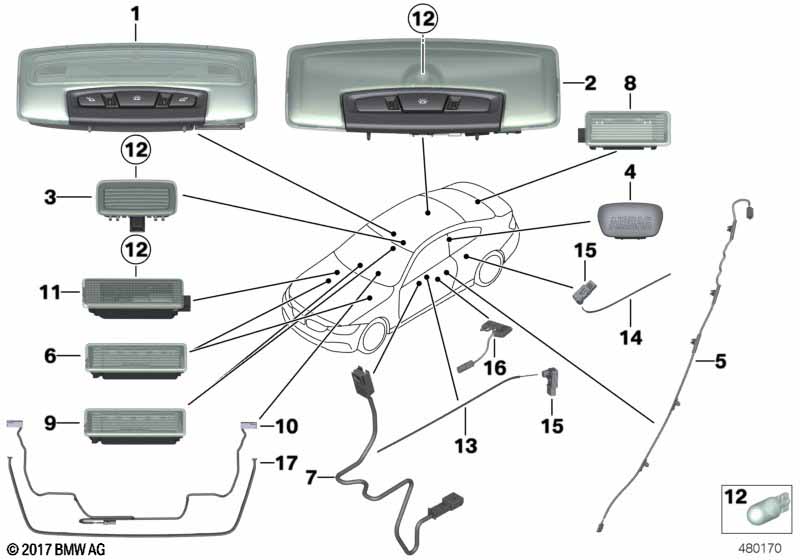

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=No P7ACA=No P7S2A=No |
|||||||||
| 01 | Interior light, front | LED | 1 | 63319312494 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package or Sport Line or Luxury Line |
P337A=Yes P7ACA=Yes P7S2A=Yes |
|||||||||
| 01 | Interior light, front | LED | 1 | 61319355396 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=No P7ACA=No P7S2A=No |
|||||||||
| 02 | Interior light, rear | LED | 1 | 63317945984 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package or Sport Line or Luxury Line |
P337A=Yes P7ACA=Yes P7S2A=Yes |
|||||||||
| 02 | Interior lamp, LED, rear | 3.5K - C | 1 | 61317945983 | Shop at ECS Tuning | |||||
| 03 | Mirror light, LED | MSA 3.5K - C | 2 | 63319397852 | ENDED | Shop at ECS Tuning | ||||
| 03 | Mirror light, LED | LED MAKEUP 3.5K | 2 | 63315A42418 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Headlining anthracite |
P7S2A=Yes S775A=Yes |
|||||||||
| 04 | Optical conductor, B-pillar | 2 | 63319242154 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line and Headlining anthracite and Fabric/Leather Breeze/anthracite or Fabric/Leather Breeze/oyster/oyster or Sensatec/veneto-beige or Sensatec/black or Leather "Dakota/veneto-beige" or Leather Dakota/black/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/veneto-beige/excl. seam |
P7S2A=Yes S775A=No CBAT=Yes CBDH=Yes KCDF=Yes KCSM=Yes LCDF=Yes LCL8=Yes LCL9=Yes LCLX=Yes LCLY=Yes |
|||||||||
| 04 | Optical conductor, B-pillar | 2 | 63319242155 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line and Headlining anthracite and Fabric Move/anthracite or Fabric Move/amber or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Sensatec/black/Accent red or Sensatec/black or Leather Dakota/black/akzent-rot or Leather Dakota/everest-grau/akzent-schw. or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
P7S2A=Yes S775A=No BDAT=Yes BDLI=Yes BEL1=Yes BEL2=Yes KCL3=Yes KCSW=Yes LCL3=Yes LCL4=Yes LCL5=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 04 | Optical conductor, B-pillar | 2 | 63319242153 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line |
P7S2A=Yes |
|||||||||
| 05 | LED module, B-pillar, left | 1 | 61319242165 | Shop at ECS Tuning | ||||||
| 05 | LED module, B-pillar, right | 1 | 61319283694 | Shop at ECS Tuning | ||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7S2A=Yes S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7S2A=Yes S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7S2A=No S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=Yes P7S2A=No S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=No P7S2A=Yes S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=No P7S2A=Yes S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=No P7S2A=No S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=Yes P7ACA=No P7S2A=No S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=Yes P7S2A=Yes S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=Yes P7S2A=Yes S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=Yes P7S2A=No S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=Yes P7S2A=No S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=No P7S2A=Yes S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=No P7S2A=Yes S563A=No |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and Light package |
P337A=No P7ACA=No P7S2A=No S563A=Yes |
|||||||||
| 06 | Footwell lamp LED | ORANGE/WEISS | 2 | 63319242161 | Shop at ECS Tuning | |||||
| 07 | LED Module for armrest | 1 | 63319240235 | Shop at ECS Tuning | ||||||
| Luggage compartment light | ||||||||||
| 08 | Interior light | LED | 1 | 63319280501 | Shop at ECS Tuning | |||||
| In door panels left and right | ||||||||||
| 09 | LED for interior lamp | HIGH POWER | 2 | 63317941911 | Shop at ECS Tuning | |||||
| 10 | LED module | 1 | 63319354148 | Shop at ECS Tuning | ||||||
| GLOVE BOX | ||||||||||
| 11 | Interior light | 5W TRÜB | 1 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| 12 | Longlife bulb | 5W | 1 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 13 | Optical conductor, door front upper left | 1 | 63319248665 | Shop at ECS Tuning | ||||||
| 13 | Optical conductor door front upper right | 1 | 63319248666 | Shop at ECS Tuning | ||||||
| 14 | Fiber-optic conductor left rear | 1 | 63319248667 | Shop at ECS Tuning | ||||||
| 14 | Fiber-optic conductor right rear | 1 | 63319248668 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=No P7ACA=No P7S2A=No |
|||||||||
| 15 | LED module / fiber-optic | 4 | 63319350967 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package or Sport Line or Luxury Line |
P337A=Yes P7ACA=Yes P7S2A=Yes |
|||||||||
| 15 | LED module | 3-POLIG | 4 | 63319353133 | Shop at ECS Tuning | |||||
| 16 | Door handle lighting, left | 1 | 63177277447 | +core | Shop at ECS Tuning | |||||
| 16 | Door handle lighting, right | 1 | 63177277448 | +core | Shop at ECS Tuning | |||||
| 17 | Optical conductor, radio / IHKA controls | 1 | 63319354147 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
