Single components for headlight for BMW 2 Series F87 M2 LCI M2 (2018)

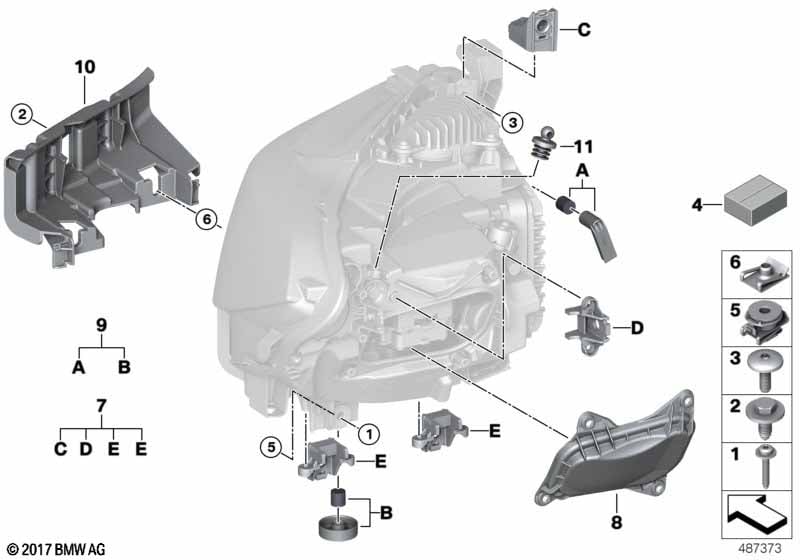

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 2 Series F87 M2 LCI M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Countersunk screw | M6X35 | 4 | 07119908008 | Shop at ECS Tuning | |||||
| 02 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| 03 | Torx screw with washer | ISA M6X18 | 2 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| 04 | Set of screws | 1 | 63117388920 | Shop at ECS Tuning | ||||||
| 05 | Alignment element | 4 | 63127280779 | Shop at ECS Tuning | ||||||
| 06 | C-clip nut | M6-ZNS3 | 6 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Set of mounts for headlights | 1 | 63117954800 | Shop at ECS Tuning | ||||||
| 08 | Left headlight cover | 1 | 63117494853 | Shop at ECS Tuning | ||||||
| 08 | Right headlight cover | 1 | 63117494854 | Shop at ECS Tuning | ||||||
| 09 | Set grommets | 2 | 63117494848 | Shop at ECS Tuning | ||||||
| 10 | Bracket left | 1 | 63117394013 | Shop at ECS Tuning | ||||||
| 10 | Bracket right | 1 | 63117394014 | Shop at ECS Tuning |
