Electronic components for headlight for BMW 2 Series F23 LCI 218d (2020)

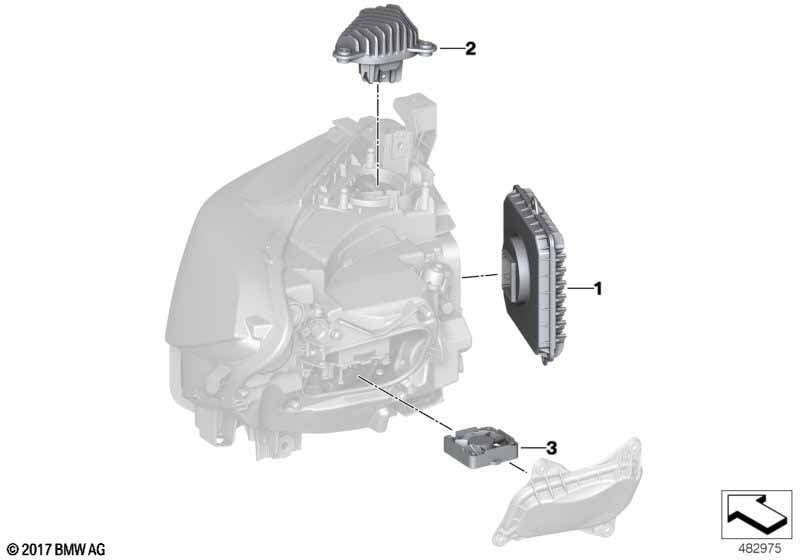

This Electronic components for headlight technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit for front light electronics | FLE2 | 2 | 63118494844 | Shop at ECS Tuning | |||||
| 02 | LED module, daytime running lights, left | 1 | 63117494851 | Shop at ECS Tuning | ||||||
| 02 | LED module, daytime running lights, rgt | 1 | 63117494852 | Shop at ECS Tuning | ||||||
| 03 | Fan | 2 | 63117955318 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F23 LCI 218d Electronic components for headlight?
- This technical diagram illustrates the Electronic components for headlight within the Lighting group for the 2 Series F23 LCI 218d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Control unit for front light electronics (Part #63118494844).
- Which models use the hardware listed in this Electronic components for headlight?
- The hardware and components featured in the Electronic components for headlight are specific to the 2 Series F23 LCI 218d produced during 2020. These technical specifications ensure that parts like the Control unit for front light electronics (63118494844) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electronic components for headlight assembly?
- Each item in the Electronic components for headlight corresponds to the numbered list below the illustration. For the 2 Series F23 LCI 218d, you can identify the Control unit for front light electronics by locating its position on the schematic, which then links to the official BMW part number 63118494844 for the Lighting section.
