Fog lights for BMW 2 Series F23 LCI 218d (2020)

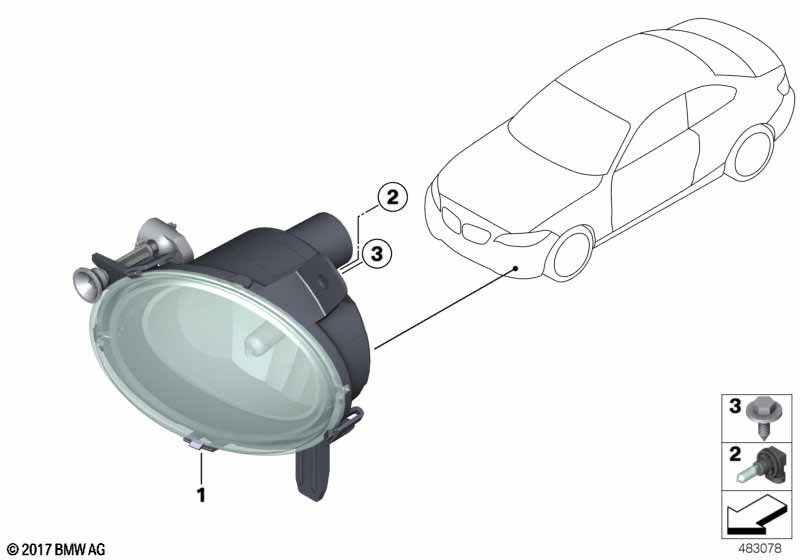

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front fog lamp, LED, left | 1 | 63177315559 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177315560 | Shop at ECS Tuning | ||||||
| 02 | Bulb | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F23 LCI 218d Fog lights?
- This technical diagram illustrates the Fog lights within the Lighting group for the 2 Series F23 LCI 218d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Front fog lamp, LED, left (Part #63177315559).
- Which models use the hardware listed in this Fog lights?
- The hardware and components featured in the Fog lights are specific to the 2 Series F23 LCI 218d produced during 2020. These technical specifications ensure that parts like the Front fog lamp, LED, left (63177315559) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lights assembly?
- Each item in the Fog lights corresponds to the numbered list below the illustration. For the 2 Series F23 LCI 218d, you can identify the Front fog lamp, LED, left by locating its position on the schematic, which then links to the official BMW part number 63177315559 for the Lighting section.
