Rear light for BMW 2 Series F22 LCI 220i (2021)

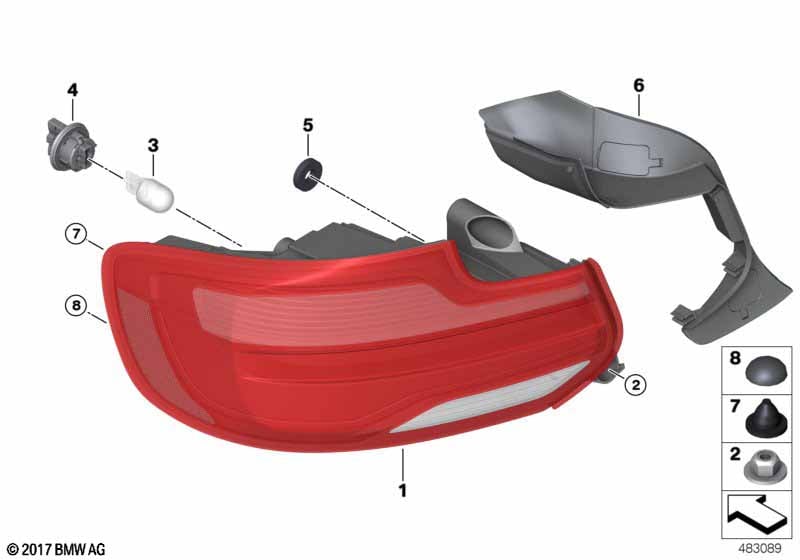

This Rear light technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light, LED, left | BLACK LINE | 1 | 03/2019 | 63219491591 | Shop at ECS Tuning | ||||
| 01 | Tail light, LED, right | BLACK LINE | 1 | 03/2019 | 63219491592 | Shop at ECS Tuning | ||||
| 02 | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 03 | Bulb | 12V 21W | 2 | 07119905328 | $25.94 | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 2 | 63217489381 | Shop at ECS Tuning | ||||||
| 05 | Tail light gasket | 2 | 63217490927 | Shop at ECS Tuning | ||||||
| 06 | Drip rail, rear left | 1 | 63217370293 | Shop at ECS Tuning | ||||||
| 06 | Drip rail, rear right | 1 | 63217370294 | Shop at ECS Tuning | ||||||
| 07 | Snap-lock coupling | 2 | 07147306640 | Shop at ECS Tuning | ||||||
| 08 | Rubber buffer | 2 | 54347166771 | $0.44 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F22 LCI 220i Rear light?
- This technical diagram illustrates the Rear light within the Lighting group for the 2 Series F22 LCI 220i produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Tail light, LED, left (Part #63219491591).
- Which models use the hardware listed in this Rear light?
- The hardware and components featured in the Rear light are specific to the 2 Series F22 LCI 220i produced during 2021. These technical specifications ensure that parts like the Tail light, LED, left (63219491591) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light assembly?
- Each item in the Rear light corresponds to the numbered list below the illustration. For the 2 Series F22 LCI 220i, you can identify the Tail light, LED, left by locating its position on the schematic, which then links to the official BMW part number 63219491591 for the Lighting section.
