Rear light for BMW 2 Series F45 Active Tourer LCI 220i (2021)

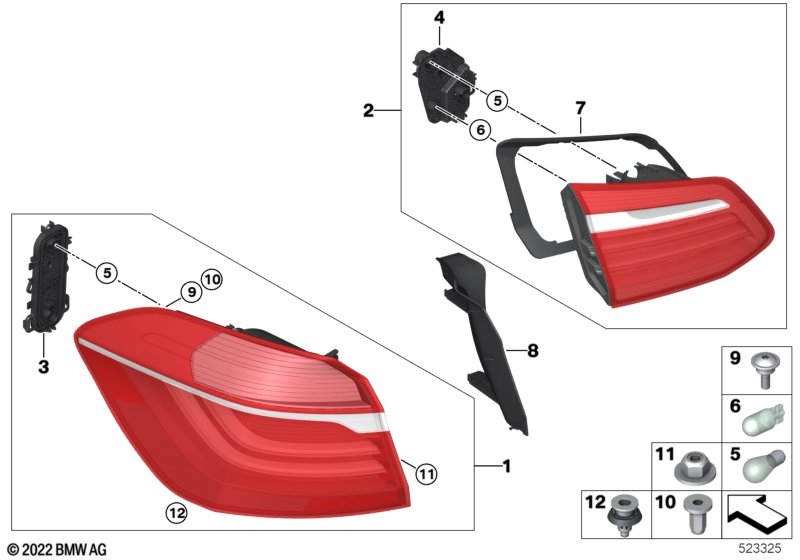

This Rear light technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491335 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491336 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491335 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491336 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and LED headlight |
L8AAA=No S552A=Yes S5A2A=Yes |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491337 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491338 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and LED headlight |
L8AAA=No S552A=Yes S5A2A=No |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491337 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491338 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and LED headlight |
L8AAA=No S552A=No S5A2A=Yes |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491337 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491338 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and LED headlight |
L8AAA=Yes S552A=Yes S5A2A=Yes |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491337 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491338 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and LED headlight |
L8AAA=Yes S552A=Yes S5A2A=No |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491337 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491338 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Adaptive LED headlight and LED headlight |
L8AAA=Yes S552A=No S5A2A=Yes |
|||||||||
| 01 | Rear light in the side panel, left | 1 | 63217491337 | Shop at ECS Tuning | ||||||
| 01 | Rear light in the side panel, right | 1 | 63217491338 | Shop at ECS Tuning | ||||||
| 02 | Rear light in trunk lid, left | 1 | 63217491339 | Shop at ECS Tuning | ||||||
| 02 | Rear light in trunk lid, right | 1 | 63217491340 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight or LED headlight |
S552A=Yes S5A2A=Yes |
|||||||||
| 02 | Rear light in trunk lid, left | 1 | 63217491341 | Shop at ECS Tuning | ||||||
| 02 | Rear light in trunk lid, right | 1 | 63217491342 | Shop at ECS Tuning | ||||||
| 03 | Bulb socket, rear light side panel | 2 | 63218737649 | Shop at ECS Tuning | ||||||
| 04 | Bulb socket,rear light in trunk lid,left | 1 | 63218737651 | Shop at ECS Tuning | ||||||
| 04 | Bulb socket,rear light in trunk lid,rght | 1 | 63218737652 | Shop at ECS Tuning | ||||||
| 05 | Longlife bulb | P21W/12V/21W | 8 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Set of rear light gaskets | 2 | 63218737658 | Shop at ECS Tuning | ||||||
| 08 | Trim, drip rail, left | 1 | 63217491343 | Shop at ECS Tuning | ||||||
| 08 | Trim, drip rail, right | 1 | 63217491344 | Shop at ECS Tuning | ||||||
| 09 | Collar screw | 4 | 07147350925 | Shop at ECS Tuning | ||||||
| 10 | Blind rivet nut with collar | M5 | 4 | 07147206525 | $1.82 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6 | 8 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 12 | Clip, rear light | 2 | 63219883874 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer LCI 220i Rear light?
- This technical diagram illustrates the Rear light within the Lighting group for the 2 Series F45 Active Tourer LCI 220i produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Rear light in the side panel, left (Part #63217491335).
- Which models use the hardware listed in this Rear light?
- The hardware and components featured in the Rear light are specific to the 2 Series F45 Active Tourer LCI 220i produced during 2021. These technical specifications ensure that parts like the Rear light in the side panel, left (63217491335) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light assembly?
- Each item in the Rear light corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer LCI 220i, you can identify the Rear light in the side panel, left by locating its position on the schematic, which then links to the official BMW part number 63217491335 for the Lighting section.
