Single parts, headlight LED for BMW X2 F39 20d

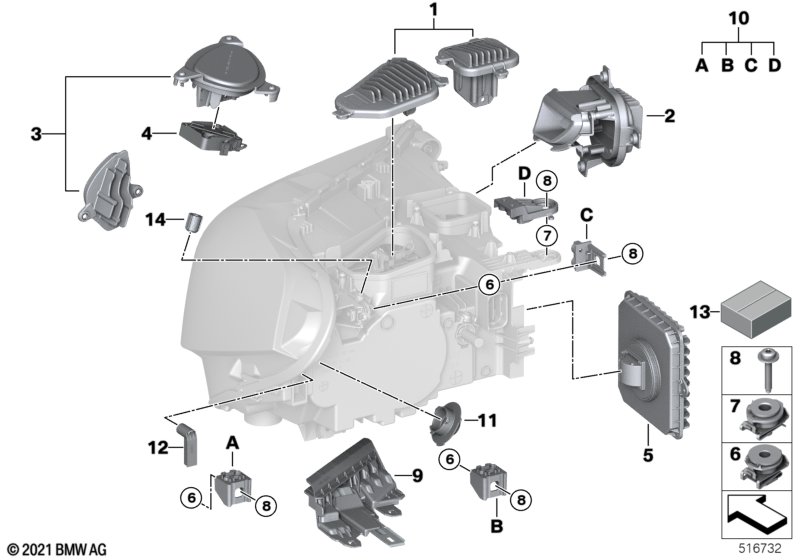

This Single parts, headlight LED technical drawing provides a detailed breakdown of the assembly for the X2 F39 20d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with LED headlight with expanded content |
S5A4A=Yes |
|||||||||
| 01 | LED module, daytime running lights, left | 1 | 63117489237 | Shop at ECS Tuning | ||||||
| 01 | LED module, daytime running lights, rgt | 1 | 63117489238 | Shop at ECS Tuning | ||||||
| 02 | LED module for cornering light, left | 1 | 63117428787 | Shop at ECS Tuning | ||||||
| 02 | LED module for cornering light, right | 1 | 63117428788 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight |
S552A=Yes |
|||||||||
| 03 | LED mod.turn sig./dayti.runn.lights left | 1 | 63115A10AF1 | Shop at ECS Tuning | ||||||
| 03 | LED mod.turn sig./dayti.run.lights right | 1 | 63115A10AF2 | Shop at ECS Tuning | ||||||
| 04 | Fan | 1 | 63115A1DF10 | Shop at ECS Tuning | ||||||
| 05 | Control unit for front light electronics | FLE2 | 2 | 11/2019 | 63118494844 | Shop at ECS Tuning | ||||
| 05 | Control unit for front light electronics | FLE2 | 2 | 63117492028 | ENDED | Shop at ECS Tuning | ||||
| 05 | Control unit for front light electronics | FLE2 | 2 | 11/2019 | 63117429125 | Shop at ECS Tuning | ||||
| 06 | Alignment element | 4 | 63127280779 | Shop at ECS Tuning | ||||||
| 07 | Alignment element | 4 | 63127387919 | Shop at ECS Tuning | ||||||
| 08 | Countersunk screw | M6X35 | 8 | 07119907286 | Shop at ECS Tuning | |||||
| 09 | Guide, bumper, left | 1 | 63117489235 | Shop at ECS Tuning | ||||||
| 09 | Guide, bumper, right | 1 | 63117489236 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight |
S552A=Yes |
|||||||||
| 10 | Set of repair mounts, left | 1 | 63119477823 | Shop at ECS Tuning | ||||||
| 10 | Set of repair mounts, right | 1 | 63119477824 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight and LED headlight with expanded content |
S552A=No S5A4A=Yes |
|||||||||
| 10 | Set of repair mounts, left | 1 | 63117428743 | Shop at ECS Tuning | ||||||
| 10 | Set of repair mounts, right | 1 | 63117428744 | Shop at ECS Tuning | ||||||
| 12 | Grommet | 2 | 63117388919 | Shop at ECS Tuning | ||||||
| 13 | Set of screws | 1 | 63117388920 | Shop at ECS Tuning | ||||||
