Headlight for BMW 2 Series F45 Active Tourer LCI 225i (2019)

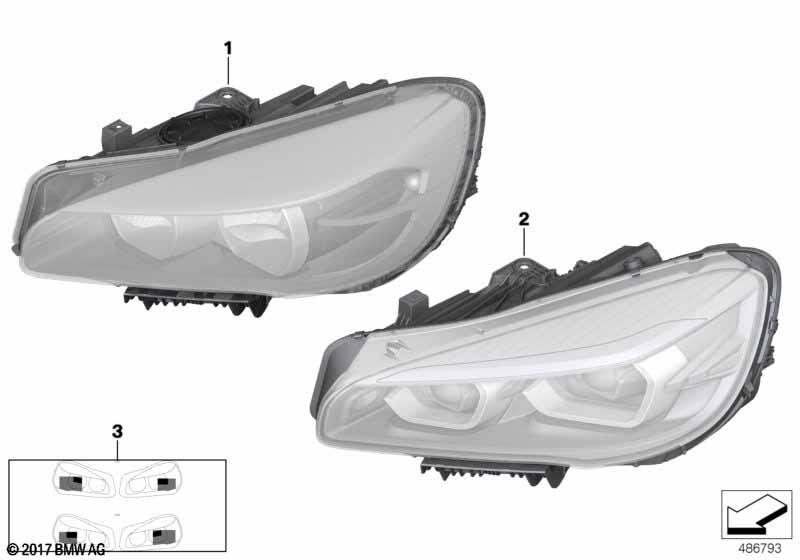

This Headlight technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 225i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights do not include control units. |
|||||||||
| For vehicles with Adaptive LED headlight and LED headlight |
S552A=No S5A2A=No |
|||||||||
| 01 | Headlight, halogen, left | 1 | 63117422573 | Shop at ECS Tuning | ||||||
| 01 | Headlight, halogen, right | 1 | 63117422574 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight |
S552A=Yes |
|||||||||
| 02 | Headlight, LED, AHL, left | 1 | 12/2020 | 63118739857 | ENDED | Shop at ECS Tuning | ||||
| 02 | Headlight, LED, AHL, right | 1 | 12/2020 | 63118739858 | ENDED | Shop at ECS Tuning | ||||
| 02 | Headlight, LED, AHL, left | LHD | 1 | 63115A32E05 | Shop at ECS Tuning | |||||
| 02 | Headlight, LED, AHL, right | LHD | 1 | 63115A32E06 | Shop at ECS Tuning | |||||
| For vehicles with LED headlight |
S5A2A=Yes |
|||||||||
| 02 | Headlight, LED technology, left | 1 | 12/2020 | 63118739853 | ENDED | Shop at ECS Tuning | ||||
| 02 | Headlight with LED technology, right | 1 | 12/2020 | 63118739854 | ENDED | Shop at ECS Tuning | ||||
| 02 | Headlight, LED technology, left | LHD | 1 | 63115A32DF7 | Shop at ECS Tuning | |||||
| 02 | Headlight with LED technology, right | LHD | 1 | 63115A32DF8 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=Yes S8LHA=Yes |
|||||||||
| 02 | Headlight, LED, AHL, left | 1 | 12/2020 | 63118739859 | Shop at ECS Tuning | |||||
| 02 | Headlight, LED, AHL, right | 1 | 12/2020 | 63118739860 | ENDED | Shop at ECS Tuning | ||||
| 02 | Headlight, LED, AHL, left | RHD | 1 | 63115A32E07 | Shop at ECS Tuning | |||||
| 02 | Headlight, LED, AHL, right | RHD | 1 | 63115A32E08 | Shop at ECS Tuning | |||||
| For vehicles with LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S5A2A=Yes S8LHA=Yes |
|||||||||
| 02 | Headlight, LED technology, left | 1 | 12/2020 | 63118739855 | ENDED | Shop at ECS Tuning | ||||
| 02 | Headlight with LED technology, right | 1 | 12/2020 | 63118739856 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED headlight |
S552A=No S5A2A=No |
|||||||||
| 03 | Set masking foil f headlight | 1 | 63112359475 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
