Headlight for BMW MINI F55 Cooper (2019)

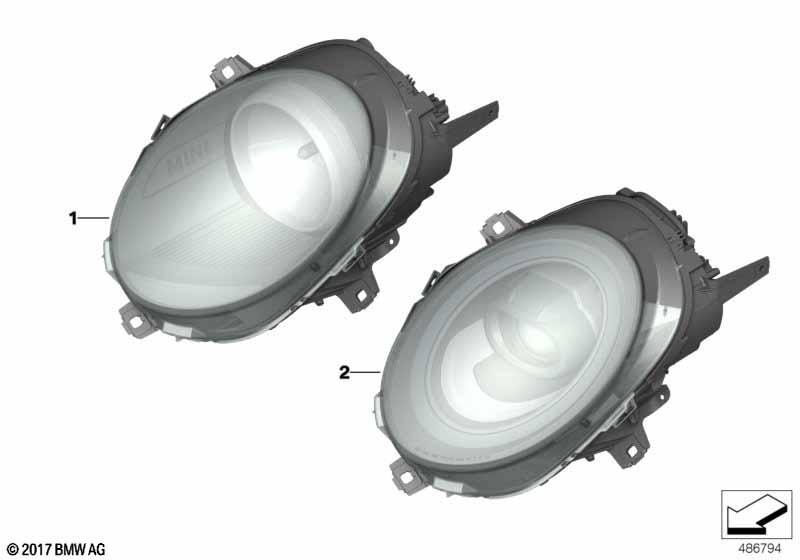

This Headlight technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlamps do not include control unit for Frontal Light Electronics. |
|||||||||
| For vehicles with Adaptive LED headlight and LED headlight and White direction indicator lights and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=No S5A2A=No S785A=Yes S8LHA=Yes |
|||||||||
| 01 | Left headlight, white turn indicator | 1 | 03/2018 | 63117433793 | Shop at ECS Tuning | |||||
| 01 | Right headlight, white turn indicator | 1 | 03/2018 | 63117433794 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and LED headlight and White direction indicator lights and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=No S5A2A=No S785A=No S8LHA=Yes |
|||||||||
| 01 | Headlight left, turn indicator yellow | 1 | 03/2018 | 63117418865 | Shop at ECS Tuning | |||||
| 01 | Headlight right, turn indicator yellow | 1 | 03/2018 | 63117418866 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and LED headlight and White direction indicator lights and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=No S5A2A=No S785A=No S8LHA=No |
|||||||||
| 01 | Headlight left, turn indicator yellow | 1 | 03/2018 | 63117418863 | Shop at ECS Tuning | |||||
| 01 | Headlight right, turn indicator yellow | 1 | 03/2018 | 63117418864 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and LED headlight and White direction indicator lights and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=No S5A2A=No S785A=Yes S8LHA=No |
|||||||||
| 01 | Left headlight, white turn indicator | 1 | 03/2018 | 63117433791 | Shop at ECS Tuning | |||||
| 01 | Right headlight, white turn indicator | 1 | 03/2018 | 63117433792 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=Yes S8LHA=Yes |
|||||||||
| 02 | Headlight, LED, AHL, high, left | RHD | 1 | 03/2018 | 63118737601 | Shop at ECS Tuning | ||||
| 02 | Headlight, LED, AHL, high, right | RHD | 1 | 03/2018 | 63118737602 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=Yes S8LHA=No |
|||||||||
| 02 | Headlight, LED, AHL, high, left | LHD | 1 | 03/2018 | 63118737599 | Shop at ECS Tuning | ||||
| If there is loss of function after a headlight is replaced, use the control unit with article number 8494844. |
||||||||||
| 02 | Headlight, LED, AHL, high, right | LHD | 1 | 03/2018 | 63118737600 | Shop at ECS Tuning | ||||
| If there is loss of function after a headlight is replaced, use the control unit with article number 8494844. |
||||||||||
| For vehicles with Adaptive LED headlight and LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=No S5A2A=Yes S8LHA=Yes |
|||||||||
| 02 | Headlight, LED technology, left | RHD | 1 | 03/2018 | 63118737595 | Shop at ECS Tuning | ||||
| 02 | Headlight with LED technology, right | RHD | 1 | 03/2018 | 63118737596 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S552A=No S5A2A=Yes S8LHA=No |
|||||||||
| 02 | Headlight, LED technology, left | LHD | 1 | 03/2018 | 63118737593 | Shop at ECS Tuning | ||||
| If there is loss of function after a headlight is replaced, use the control unit with article number 8494844. |
||||||||||
| 02 | Headlight with LED technology, right | LHD | 1 | 03/2018 | 63118737594 | Shop at ECS Tuning | ||||
| If there is loss of function after a headlight is replaced, use the control unit with article number 8494844. |
||||||||||
