Headlight bumper for BMW MINI Cabrio F57 JCW (2019)

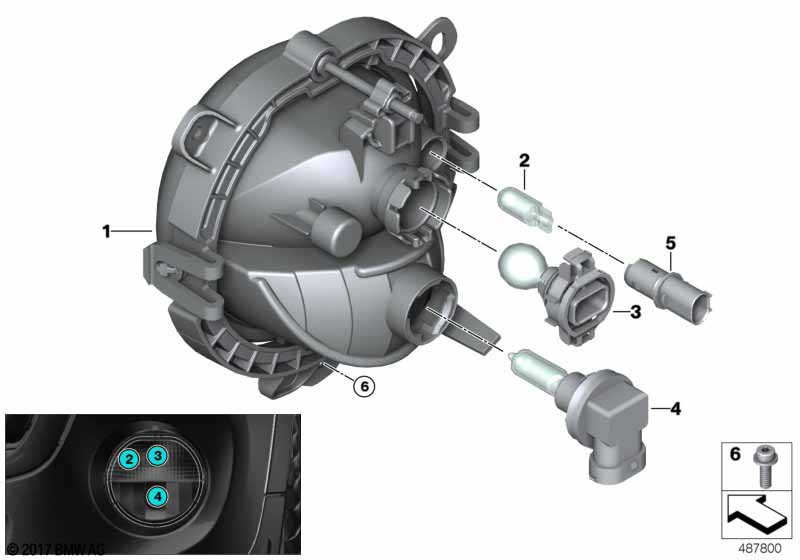

This Headlight bumper technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Adaptive LED headlight and LED Fog lights |
S552A=Yes S5A1A=Yes |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329171 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329172 | Shop at ECS Tuning | ||||
| For vehicles with Fog lights and Adaptive LED headlight and LED headlight |
S520A=Yes S552A=No S5A2A=No |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 63177298331 | Shop at ECS Tuning | |||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 63177298332 | Shop at ECS Tuning | |||||
| For vehicles with LED Fog lights and LED headlight and LED headlight with expanded content |
S5A1A=Yes S5A2A=Yes S5A4A=Yes |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329171 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329172 | Shop at ECS Tuning | ||||
| For vehicles with LED Fog lights and LED headlight and LED headlight with expanded content |
S5A1A=Yes S5A2A=Yes S5A4A=No |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329171 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329172 | Shop at ECS Tuning | ||||
| For vehicles with LED Fog lights and LED headlight and LED headlight with expanded content |
S5A1A=Yes S5A2A=No S5A4A=Yes |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329171 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329172 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED Fog lights and LED headlight |
S552A=Yes S5A1A=No S5A2A=Yes |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329169 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329170 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED Fog lights and LED headlight |
S552A=Yes S5A1A=No S5A2A=No |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329169 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329170 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED Fog lights and LED headlight |
S552A=No S5A1A=No S5A2A=Yes |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177329169 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177329170 | Shop at ECS Tuning | ||||
| For vehicles with Fog lights and Adaptive LED headlight and LED Fog lights and LED headlight |
S520A=No S552A=No S5A1A=No S5A2A=No |
|||||||||
| 01 | Headlight, bumper, left | 1 | 03/2018 | 07/2019 | 63177298333 | Shop at ECS Tuning | ||||
| 01 | Headlight, bumper, right | 1 | 03/2018 | 07/2019 | 63177298334 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED Fog lights and LED headlight |
S552A=Yes S5A1A=Yes S5A2A=Yes |
|||||||||
| 02 | Longlife bulb | 5W | 2 | 03/2018 | 63217381433 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED Fog lights and LED headlight |
S552A=Yes S5A1A=Yes S5A2A=No |
|||||||||
| 02 | Longlife bulb | 5W | 2 | 03/2018 | 63217381433 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive LED headlight and LED Fog lights and LED headlight |
S552A=No S5A1A=Yes S5A2A=Yes |
|||||||||
| 02 | Longlife bulb | 5W | 2 | 03/2018 | 63217381433 | Shop at ECS Tuning | ||||
| For vehicles with Fog lights and Adaptive LED headlight and LED Fog lights and LED headlight |
S520A=No S552A=No S5A1A=No S5A2A=No |
|||||||||
| 02 | Longlife bulb | 5W | 2 | 03/2018 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 03 | Bulb | 12V 24W | 2 | 03/2018 | 63217301310 | +core | Shop at ECS Tuning | |||
| 04 | Bulb | H8 12V 35W | 2 | 03/2018 | 07119906503 | Shop at ECS Tuning | ||||
| 05 | Bulb socket, parking light | 2 | 03/2018 | 63127703969 | $8.86 | Shop at ECS Tuning | ||||
| 06 | Isa screw with washer | M5X12-8.8-ZNNIV | 6 | 03/2018 | 07129905835 | Shop at ECS Tuning | ||||
