Single parts, headlight LED for BMW 2 Series F45 Active Tourer LCI 216i (2021)

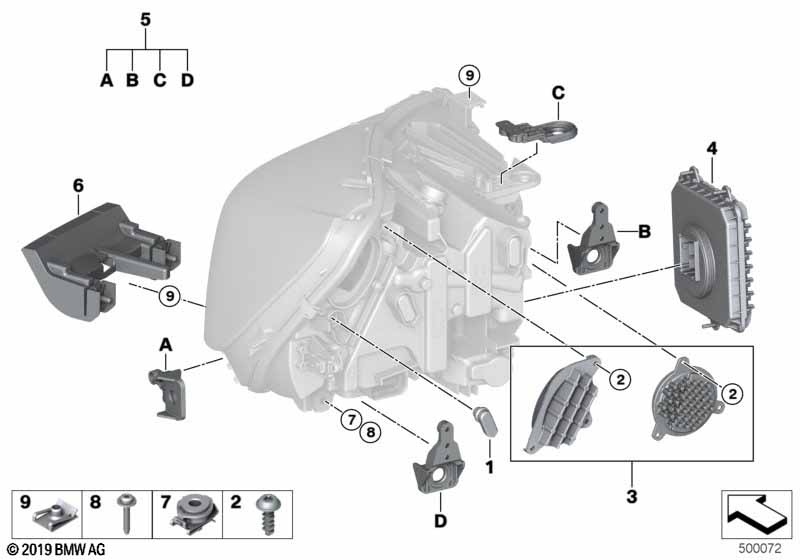

This Single parts, headlight LED technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set seal headlight | 1 | 63217491656 | Shop at ECS Tuning | ||||||
| 02 | Set of screws | 1 | 63117387835 | Shop at ECS Tuning | ||||||
| 03 | LED mod.turn sig./dayti.runn.lights left | 1 | 63217491663 | Shop at ECS Tuning | ||||||
| 03 | LED mod.turn sig./dayti.run.lights right | 1 | 63217491664 | Shop at ECS Tuning | ||||||
| 04 | Control unit for front light electronics | FLE2 | 2 | 11/2019 | 63117429125 | Shop at ECS Tuning | ||||
| 05 | Set of repair holders | 1 | 63117391394 | Shop at ECS Tuning | ||||||
| 06 | Bracket headlight left | 1 | 63117391395 | Shop at ECS Tuning | ||||||
| 06 | Bracket headlight right | 1 | 63117391396 | Shop at ECS Tuning | ||||||
| 07 | Alignment element | 4 | 63127280779 | Shop at ECS Tuning | ||||||
| 08 | Countersunk screw | M6X35 | 8 | 07119908008 | Shop at ECS Tuning | |||||
| 09 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning |
