Fog lamp M-Technik for BMW 5 Series E39 525d (2003)
This Fog lamp M-Technik technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Cover glass, clear / not fluted | ||||||||||

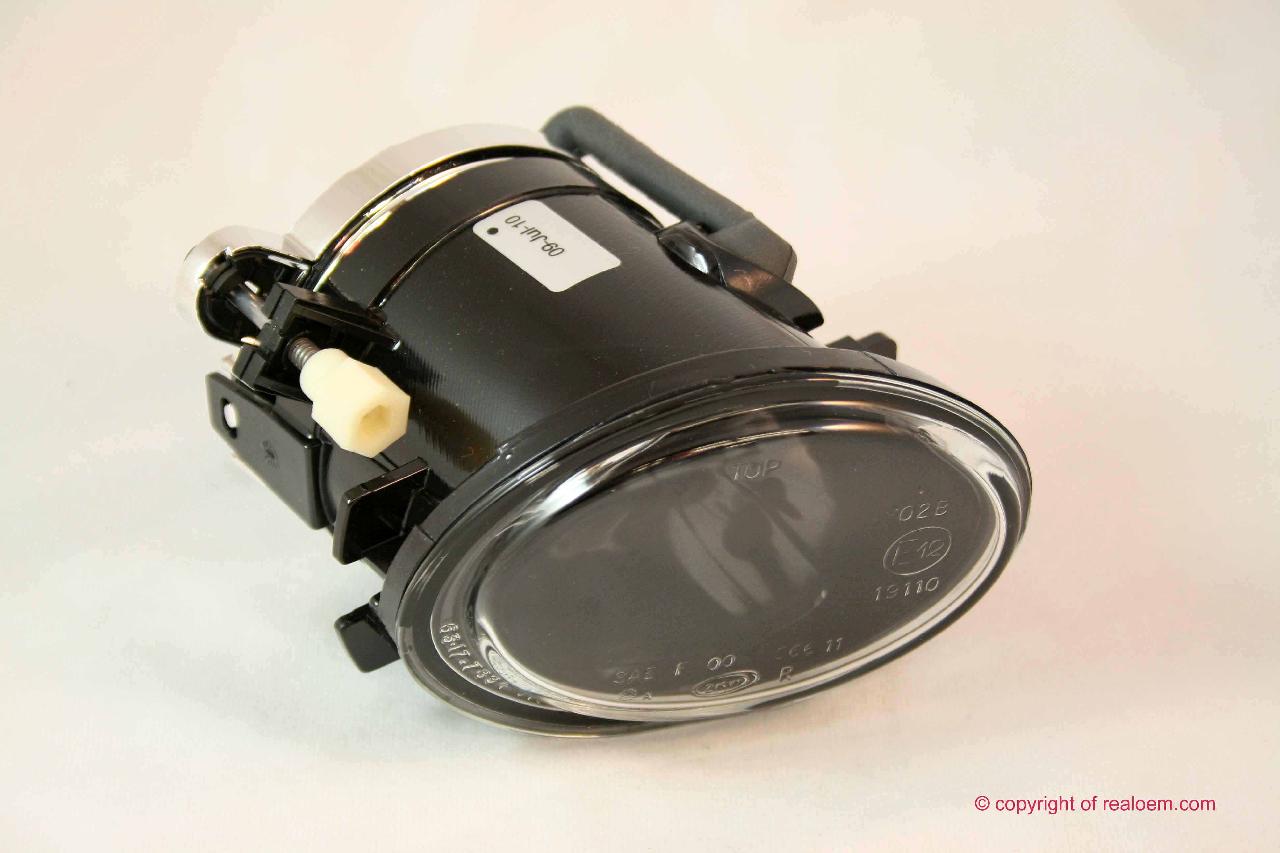

| 01 | Fog lights, left | 1 | 09/2000 | 63177894017 | $121.75 | Shop at ECS Tuning | ||||
| 01 | Fog lights, right | 1 | 09/2000 | 63177894018 | $121.75 | Shop at ECS Tuning | ||||
| 02 | Low beam and/or fog lightbulb | HB4 12V 55W | 2 | 63217160786 | $18.86 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,2-3-ZNS3 | 4 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | 4,2X16 | 4 | 07119904265 | Shop at ECS Tuning | |||||
| 05 | Socket housing, grey | 2 POL. | 4 | 61138364498 | $2.33 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flat spring contact JPT ELA with cable | 0,5-1,0 MM² AG | 1 | 61130070584 | Shop at ECS Tuning | |||||
