Single parts, headlight electronics for BMW 8 Series G16 Gran Coupé 840dX (2025)

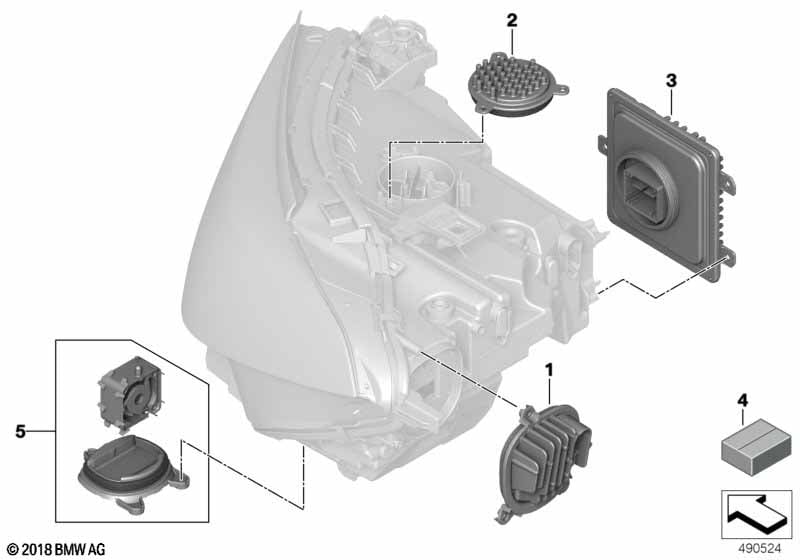

This Single parts, headlight electronics technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | LED mod.turn sig./dayti.runn.lights left | 1 | 63119498647 | Shop at ECS Tuning | ||||||
| 01 | LED mod.turn sig./dayti.run.lights right | 1 | 63119498648 | Shop at ECS Tuning | ||||||
| 02 | LED module for daytime driving lights | 2 | 63118496134 | Shop at ECS Tuning | ||||||
| Please refer to PuMA measure 64576750 | ||||||||||
| 03 | Control unit for front light electronics | FLM 2 | 2 | 63115A0AFB0 | Shop at ECS Tuning | |||||
| 04 | Set of screws | 1 | 63117387835 | Shop at ECS Tuning | ||||||
| 05 | Repair kit fan | 2 | 63119498642 | Shop at ECS Tuning | ||||||
