Reflectors / lights, outer for BMW 8 Series G15 Coupé 840dX (2025)

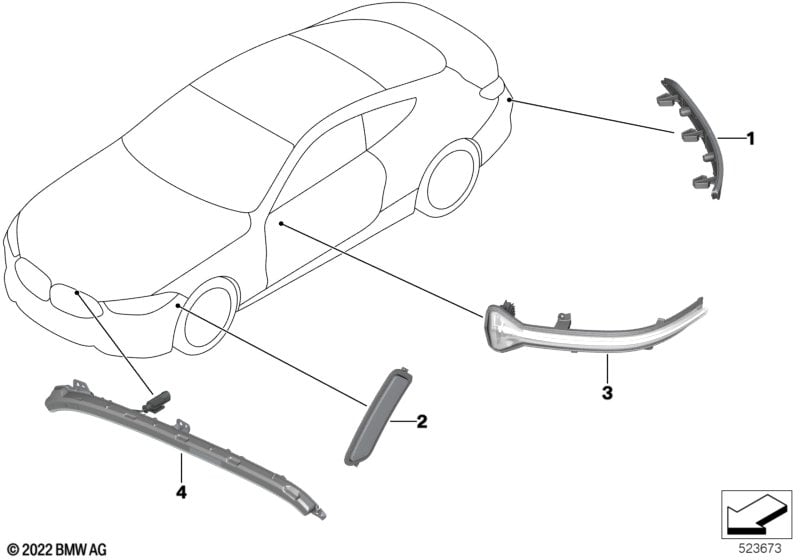

This Reflectors / lights, outer technical drawing provides a detailed breakdown of the assembly for the 8 Series G15 Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | License plate light is in tailgate handle strip |
|||||||||
| 01 | Reflector, rear left | 1 | 63177445783 | Shop at ECS Tuning | ||||||
| 01 | Reflector, rear right | 1 | 63177445784 | Shop at ECS Tuning | ||||||
| 03 | Turn signal lamp ex.rearview mirror left | 1 | 51167414649 | Shop at ECS Tuning | ||||||
| 03 | Turn signal lamp ex.rearview mirror ri. | 1 | 51167414650 | Shop at ECS Tuning | ||||||
| 04 | Light module radiator grille left | 1 | 03/2022 | 63149853689 | Shop at ECS Tuning | |||||
| 04 | Light module radiator grille right | 1 | 03/2022 | 63149853690 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G15 Coupé 840dX Reflectors / lights, outer?
- This technical diagram illustrates the Reflectors / lights, outer within the Lighting group for the 8 Series G15 Coupé 840dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Reflector, rear left (Part #63177445783).
- Which models use the hardware listed in this Reflectors / lights, outer?
- The hardware and components featured in the Reflectors / lights, outer are specific to the 8 Series G15 Coupé 840dX produced during 2025. These technical specifications ensure that parts like the Reflector, rear left (63177445783) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflectors / lights, outer assembly?
- Each item in the Reflectors / lights, outer corresponds to the numbered list below the illustration. For the 8 Series G15 Coupé 840dX, you can identify the Reflector, rear left by locating its position on the schematic, which then links to the official BMW part number 63177445783 for the Lighting section.
