Fog lights for BMW 3 Series G20 Sedan 330iX (2022)

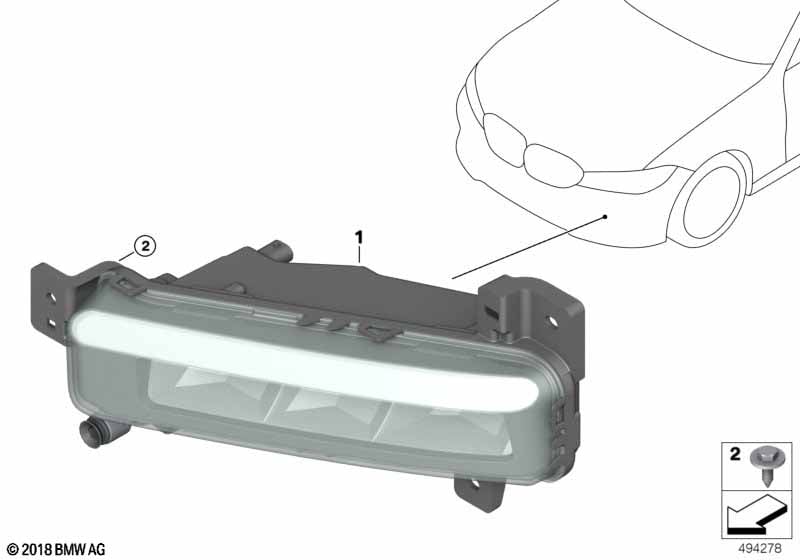

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with LED Fog lights and M Aerodynamics package |
S5A1A=Yes S715A=Yes |
|||||||||
| 01 | Front fog lamp, LED, left | M | 1 | 63178089525 | Shop at ECS Tuning | |||||
| 01 | Front fog lamp, LED, right | M | 1 | 63178089526 | Shop at ECS Tuning | |||||
| For vehicles with LED Fog lights and M Aerodynamics package |
S5A1A=Yes S715A=No |
|||||||||
| 01 | Front fog lamp, LED, left | 1 | 63177433787 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177433788 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | TS5X17 SW8 D=16 | 6 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
