Headlight for BMW 7 Series G11 LCI 740dX (2020)

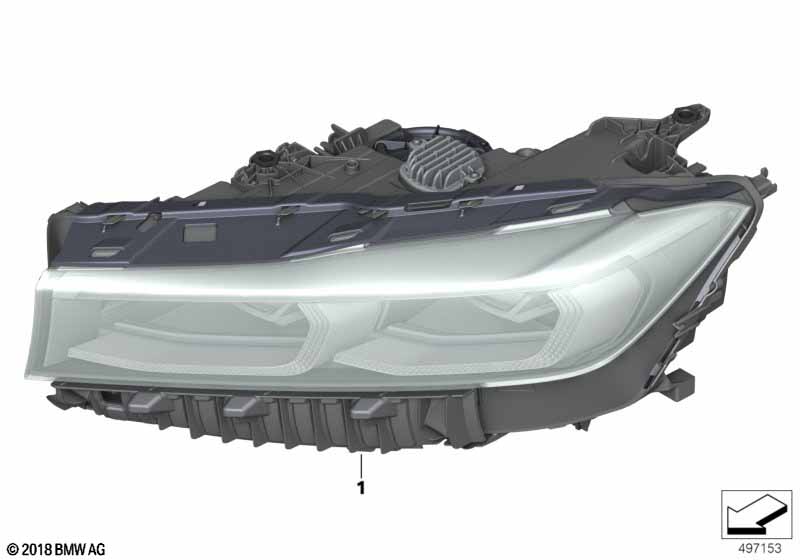

This Headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights do not include control units. |
|||||||||
| For vehicles with National version japan and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S5AZA=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63119450231 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63119450232 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S5AZA=Yes S8LHA=No |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63119450231 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63119450232 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No S5AZA=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63119450231 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63119450232 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S5AZA=No S8LHA=Yes |
|||||||||
| 01 | Headlight, LED, AHL, left | 1 | 63119450227 | Shop at ECS Tuning | ||||||
| 01 | Headlight, LED, AHL, right | 1 | 63119450228 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S5AZA=No S8LHA=No |
|||||||||
| 01 | Headlight, LED, AHL, left | 1 | 63119450227 | Shop at ECS Tuning | ||||||
| 01 | Headlight, LED, AHL, right | 1 | 63119450228 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No L8AAA=No S5AZA=No S8LHA=Yes |
|||||||||
| 01 | Headlight, LED, AHL, left | 1 | 63119450227 | Shop at ECS Tuning | ||||||
| 01 | Headlight, LED, AHL, right | 1 | 63119450228 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No L8AAA=No S5AZA=No S8LHA=No |
|||||||||
| 01 | Headlight, LED, AHL, left | 1 | 63119450225 | Shop at ECS Tuning | ||||||
| 01 | Headlight, LED, AHL, right | 1 | 63119450226 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and BMW Laserlicht and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No L8AAA=No S5AZA=Yes S8LHA=No |
|||||||||
| 01 | Headlight, laser light, left | 1 | 63119450229 | Shop at ECS Tuning | ||||||
| 01 | Headlight, laser light, right | 1 | 63119450230 | Shop at ECS Tuning | ||||||
