Auxiliary turn signal lamp/s outer for BMW 1 Series F40 120dX (2024)

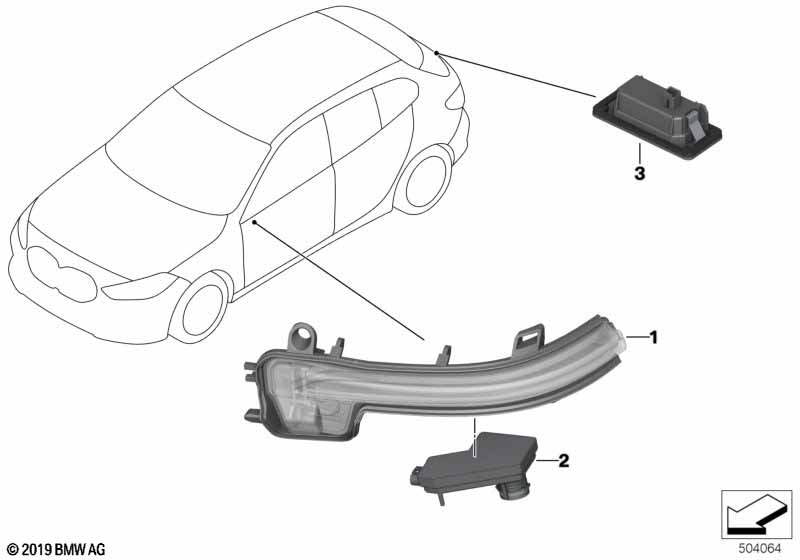

This Auxiliary turn signal lamp/s outer technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Auxiliary turn signal, mirror, left | 1 | 51169879127 | Shop at ECS Tuning | ||||||
| 01 | Auxiliary turn signal, mirror, right | 1 | 51169879128 | Shop at ECS Tuning | ||||||
| 02 | Light module, left | 1 | 63178497455 | Shop at ECS Tuning | ||||||
| 03 | Registration plate light | 2 | 63267410302 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 120dX Auxiliary turn signal lamp/s outer?
- This technical diagram illustrates the Auxiliary turn signal lamp/s outer within the Lighting group for the 1 Series F40 120dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Auxiliary turn signal, mirror, left (Part #51169879127).
- Which models use the hardware listed in this Auxiliary turn signal lamp/s outer?
- The hardware and components featured in the Auxiliary turn signal lamp/s outer are specific to the 1 Series F40 120dX produced during 2024. These technical specifications ensure that parts like the Auxiliary turn signal, mirror, left (51169879127) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Auxiliary turn signal lamp/s outer assembly?
- Each item in the Auxiliary turn signal lamp/s outer corresponds to the numbered list below the illustration. For the 1 Series F40 120dX, you can identify the Auxiliary turn signal, mirror, left by locating its position on the schematic, which then links to the official BMW part number 51169879127 for the Lighting section.
