Headlight for BMW 5 Series F90 M5 LCI M5 (2023)

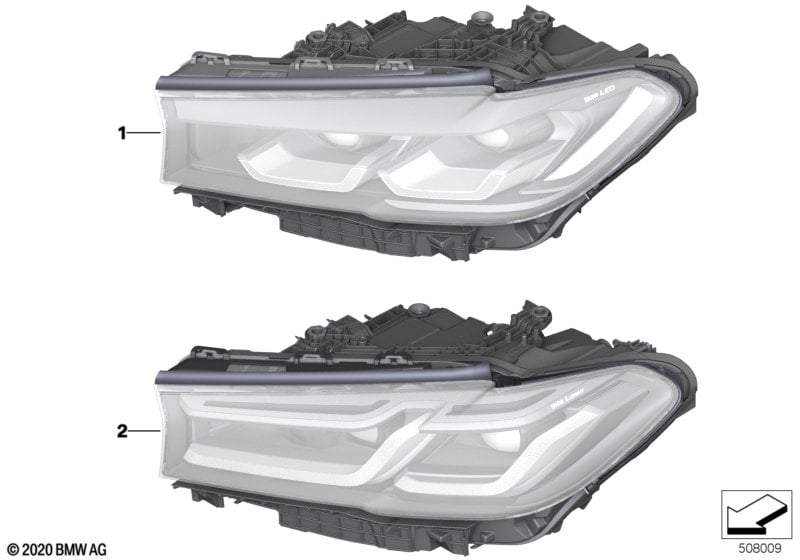

This Headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series F90 M5 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights do not include control units. |
|||||||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=Yes S5AZA=No |
|||||||||
| 02 | Headlight, LED, AHL, left | US / SHAD.LINE | 1 | 63118084379 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Headlight, LED, AHL, right | US / SHAD.LINE | 1 | 63118084380 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Locking mechanism | 1 | 63117489213 | Shop at ECS Tuning | ||||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=Yes S5AZA=Yes |
|||||||||
| 02 | Headlight, laser light, left | US/LASER/SH.LI | 1 | 63118084385 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Headlight, laser light, right | US/LASER/SH.LI | 1 | 63118084386 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Locking mechanism | 1 | 63117489213 | Shop at ECS Tuning | ||||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=No S5AZA=Yes |
|||||||||
| 02 | Headlight, laser light, left | US / LASER | 1 | 63119479271 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Headlight, laser light, right | US / LASER | 1 | 63119479272 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Locking mechanism | 1 | 63117489213 | Shop at ECS Tuning | ||||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=No S5AZA=No |
|||||||||
| 02 | Headlight, LED, AHL, left | LHD / US | 1 | 63119479265 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Headlight, LED, AHL, right | LHD / US | 1 | 63119479266 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Locking mechanism | 1 | 63117489213 | Shop at ECS Tuning | ||||||
