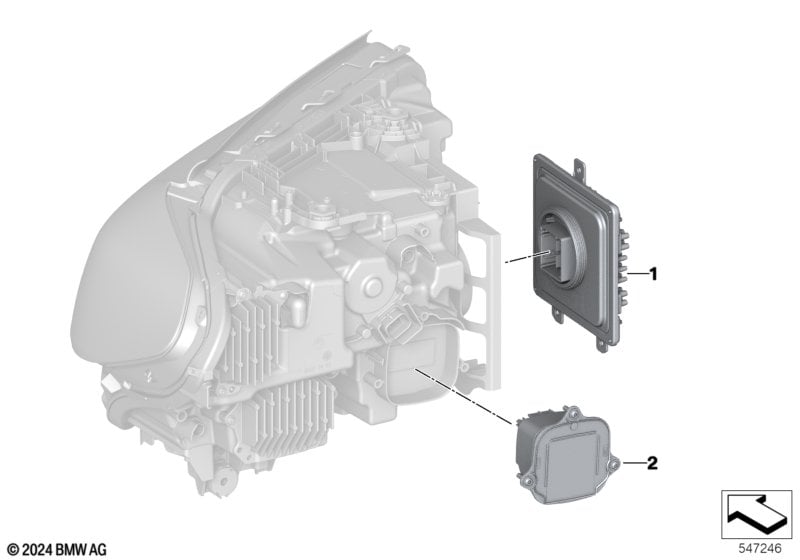

Single parts, headlight electronics for BMW 5 Series G30 LCI 530d (2022)
This Single parts, headlight electronics technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The two exterior cooling elements (modules) are not available individually, and are only available with the headlight. |
|||||||||
| For vehicles with Adaptive LED headlight and BMW Laserlicht |
S552A=Yes S5AZA=Yes |
|||||||||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 63115A0AFC0 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and BMW Laserlicht |
S552A=Yes S5AZA=No |
|||||||||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 63115A0AFC0 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and BMW Laserlicht |
S552A=No S5AZA=Yes |
|||||||||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 63115A0AFC0 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and BMW Laserlicht |
S552A=No S5AZA=No |
|||||||||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 63115A0AF90 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 530d Single parts, headlight electronics?
- This technical diagram illustrates the Single parts, headlight electronics within the Lighting group for the 5 Series G30 LCI 530d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Control unit for front light electronics (Part #63115A0AFC0).
- Which models use the hardware listed in this Single parts, headlight electronics?
- The hardware and components featured in the Single parts, headlight electronics are specific to the 5 Series G30 LCI 530d produced during 2022. These technical specifications ensure that parts like the Control unit for front light electronics (63115A0AFC0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, headlight electronics assembly?
- Each item in the Single parts, headlight electronics corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 530d, you can identify the Control unit for front light electronics by locating its position on the schematic, which then links to the official BMW part number 63115A0AFC0 for the Lighting section.
