Rear light for BMW 5 Series G30 LCI 530d (2023)

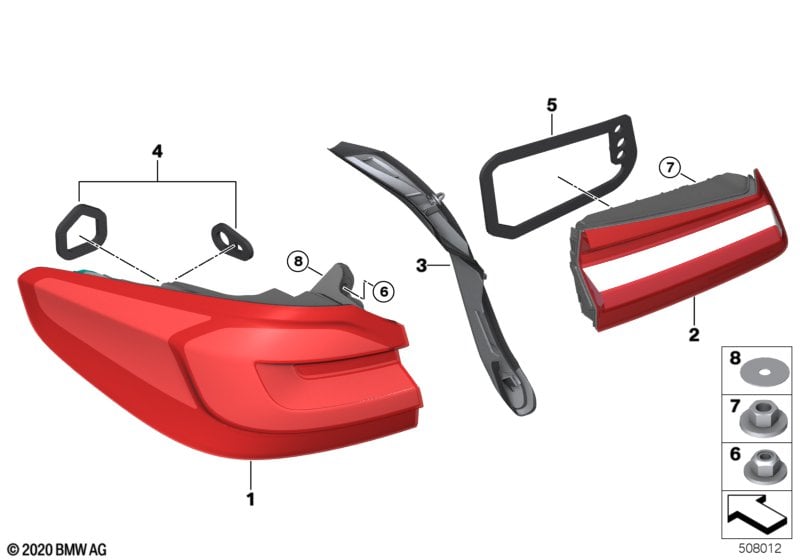

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light side panel LED left | 1 | 63215A711B1 | Shop at ECS Tuning | ||||||
| 01 | Tail light side panel LED right | 1 | 63215A711B2 | Shop at ECS Tuning | ||||||
| 02 | Tail light trunk lid LED left | 1 | 63218493815 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tail light trunk lid LED right | 1 | 63218493818 | ENDED | Shop at ECS Tuning | |||||
| 02 | Tail light trunk lid LED left | 1 | 01/2021 | 63215A38AF1 | Shop at ECS Tuning | |||||
| 02 | Tail light trunk lid LED right | 1 | 01/2021 | 63215A38AF4 | Shop at ECS Tuning | |||||
| 03 | Trim, drip rail, left | 1 | 63218493821 | Shop at ECS Tuning | ||||||
| 03 | Trim, drip rail, right | 1 | 63218493822 | Shop at ECS Tuning | ||||||
| 04 | Set of seals, rear light, side panel | 1 | 63215A18C98 | Shop at ECS Tuning | ||||||
| 05 | Set of seals, tail lamp, trunk lid | 1 | 63215A18C99 | Shop at ECS Tuning | ||||||
| 06 | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Washer, plastic | 2 | 63217457464 | Shop at ECS Tuning |
