Headlight for BMW 4 Series G22 Coupé 420d (2023)

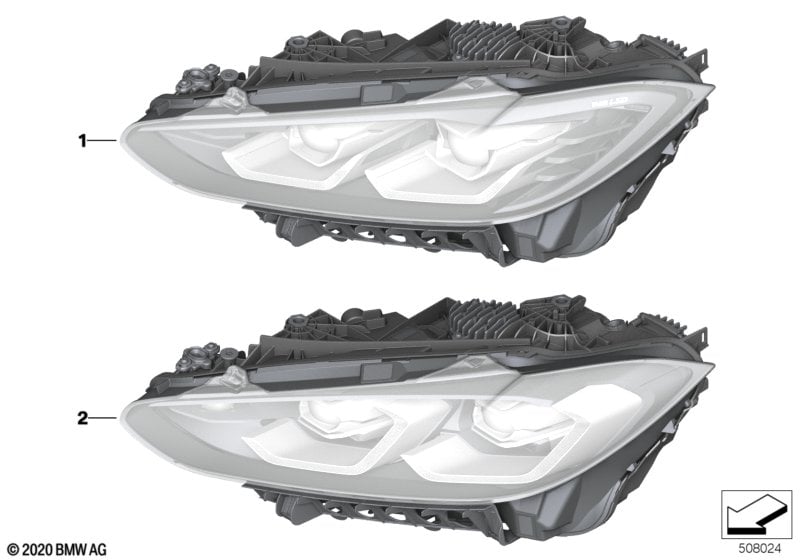

This Headlight technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlights do not include control units. |
|||||||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=Yes S5AZA=No |
|||||||||
| 01 | Headlight, LED technology, left | RHD / SHAD.LINE | 1 | 63118084887 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | RHD / SHAD.LINE | 1 | 63118084888 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=No S5AZA=No |
|||||||||
| 01 | Headlight, LED technology, left | RHD | 1 | 63119851037 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | RHD | 1 | 63119851038 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=Yes S5AZA=Yes |
|||||||||
| 02 | Headlight, laser light, left | RHD / SHAD.LINE | 1 | 63118084893 | Shop at ECS Tuning | |||||
| 02 | Headlight, laser light, right | RHD / SHAD.LINE | 1 | 63118084894 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and BMW Laserlicht |
S3MFA=No S5AZA=Yes |
|||||||||
| 02 | Headlight, laser light, left | RHD | 1 | 63119851043 | Shop at ECS Tuning | |||||
| 02 | Headlight, laser light, right | RHD | 1 | 63119851044 | Shop at ECS Tuning | |||||
