Single parts, headlight electronics for BMW 4 Series G22 Coupé 430i (2020)

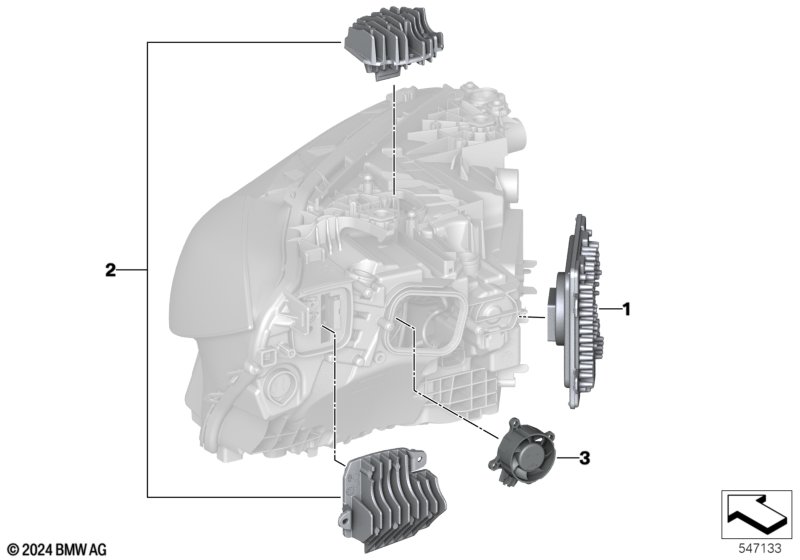

This Single parts, headlight electronics technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Laserlicht |
S5AZA=Yes |
|||||||||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 07/2021 | 63119850445 | ENDED | Shop at ECS Tuning | |||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 63115A0AFC0 | Shop at ECS Tuning | |||||
| For vehicles with BMW Laserlicht |
S5AZA=No |
|||||||||
| 01 | Control unit for front light electronics | FLM 2 | 1 | 63115A0AF90 | Shop at ECS Tuning | |||||
| For vehicles with BMW Laserlicht Can only be exchanged in pairs; inner and outer. The light class of the LED must be identical. |
S5AZA=Yes |
|||||||||
| 02 | LED mod.turn sig./dayti.runn.lights left | ECE/LASER | 1 | 63119851049 | Shop at ECS Tuning | |||||
| 02 | LED mod.turn sig./dayti.run.lights right | ECE/LASER | 1 | 63119851050 | Shop at ECS Tuning | |||||
| For vehicles with BMW Laserlicht Can only be exchanged in pairs; inner and outer. The light class of the LED must be identical. |
S5AZA=No |
|||||||||
| 02 | LED module, daytime running lights, left | LED | 1 | 63119851047 | Shop at ECS Tuning | |||||
| 02 | LED module, daytime running lights, rgt | LED | 1 | 63119851048 | Shop at ECS Tuning | |||||
| For vehicles with BMW Laserlicht |
S5AZA=Yes |
|||||||||
| 03 | LED display for fan | 1 | 63119498421 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
