Rear light for BMW 4 Series G22 Coupé 420dX (2023)

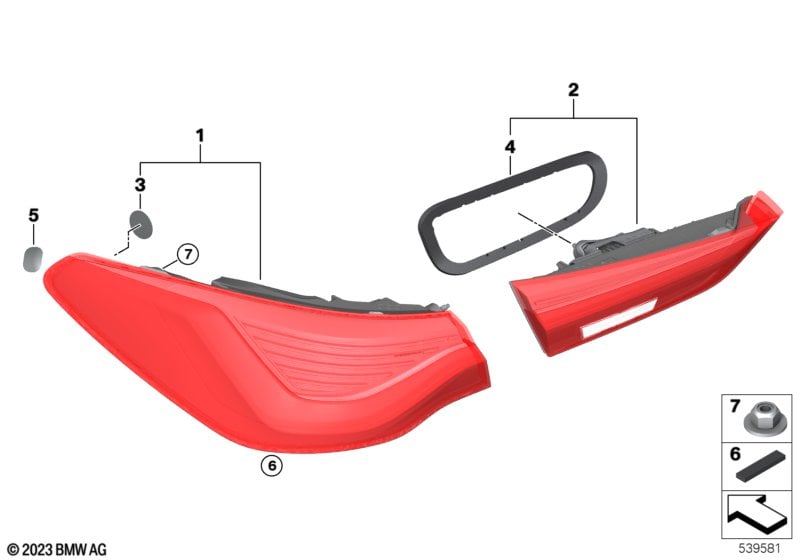

This Rear light technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Observe REP-REP-P-6321283 repair instructions Observe REP-REP-P-6321275 repair instructions Observe REP-REP-P-6321277 repair instructions |
||||||||||
| 01 | Rear light in the side panel, left | ECE | 1 | 06/2022 | 63217477603 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Rear light in the side panel, right | ECE | 1 | 06/2022 | 63217477604 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive pad | 10X45MM | 1 | 06/2022 | 51187134021 | $1.00 | Shop at ECS Tuning | |||
| 02 | Rear light in trunk lid, left | ECE RHD | 1 | 63217956629 | Shop at ECS Tuning | |||||
| 02 | Rear light in trunk lid, right | ECE RHD | 1 | 63217956630 | Shop at ECS Tuning | |||||
| 03 | Seal, rear light, side panel | 1 | 63219880427 | Shop at ECS Tuning | ||||||
| 04 | Seal, rear light,luggage-compartment lid | LASER | 1 | 63219880429 | Shop at ECS Tuning | |||||
| 05 | Protective film | 2 | 63215A63FB0 | Shop at ECS Tuning | ||||||
| 06 | Adhesive pad | 10X45MM | 2 | 51187134021 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M6 | 6 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
