Third stoplamp for BMW 4 Series G22 Coupé 430dX (2024)

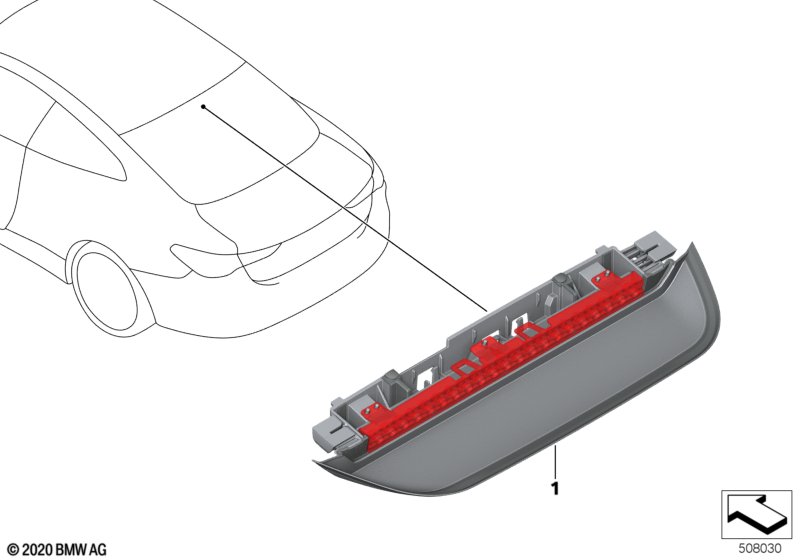

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 01 | Third stoplamp | 1 | 63257477628 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 01 | Third stoplamp | 1 | 63257477627 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 430dX Third stoplamp?
- This technical diagram illustrates the Third stoplamp within the Lighting group for the 4 Series G22 Coupé 430dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Third stoplamp (Part #63257477628).
- Which models use the hardware listed in this Third stoplamp?
- The hardware and components featured in the Third stoplamp are specific to the 4 Series G22 Coupé 430dX produced during 2024. These technical specifications ensure that parts like the Third stoplamp (63257477628) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Third stoplamp assembly?
- Each item in the Third stoplamp corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 430dX, you can identify the Third stoplamp by locating its position on the schematic, which then links to the official BMW part number 63257477628 for the Lighting section.
