Reflector for BMW 4 Series G22 Coupé 430dX (2023)

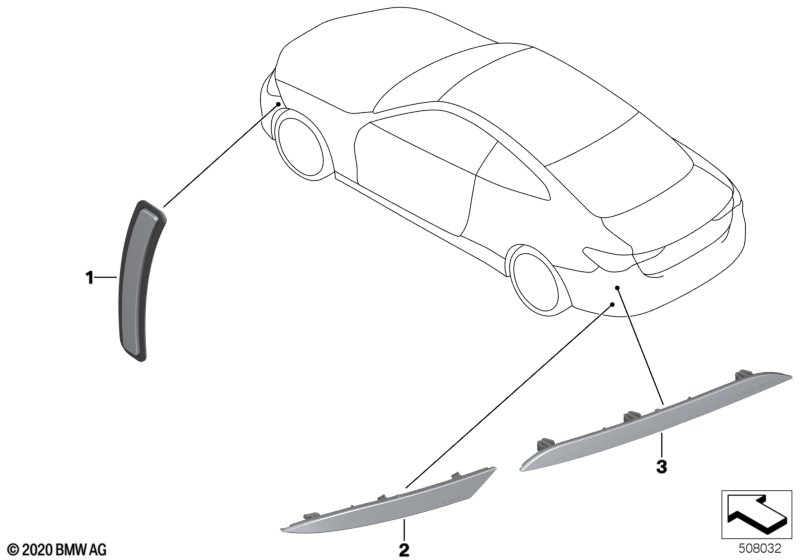

This Reflector technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 02 | Reflector, rear left | 1 | 63147477633 | Shop at ECS Tuning | ||||||
| 02 | Reflector, rear right | 1 | 63147477634 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 03 | Reflector, rear left | M | 1 | 63148076325 | Shop at ECS Tuning | |||||
| 03 | Reflector, rear right | M | 1 | 63148076326 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 430dX Reflector?
- This technical diagram illustrates the Reflector within the Lighting group for the 4 Series G22 Coupé 430dX produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Reflector, rear left (Part #63147477633).
- Which models use the hardware listed in this Reflector?
- The hardware and components featured in the Reflector are specific to the 4 Series G22 Coupé 430dX produced during 2023. These technical specifications ensure that parts like the Reflector, rear left (63147477633) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflector assembly?
- Each item in the Reflector corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 430dX, you can identify the Reflector, rear left by locating its position on the schematic, which then links to the official BMW part number 63147477633 for the Lighting section.
