Fiber-optic cable, door for BMW 4 Series G82 M4 Coupé M4 (2024)

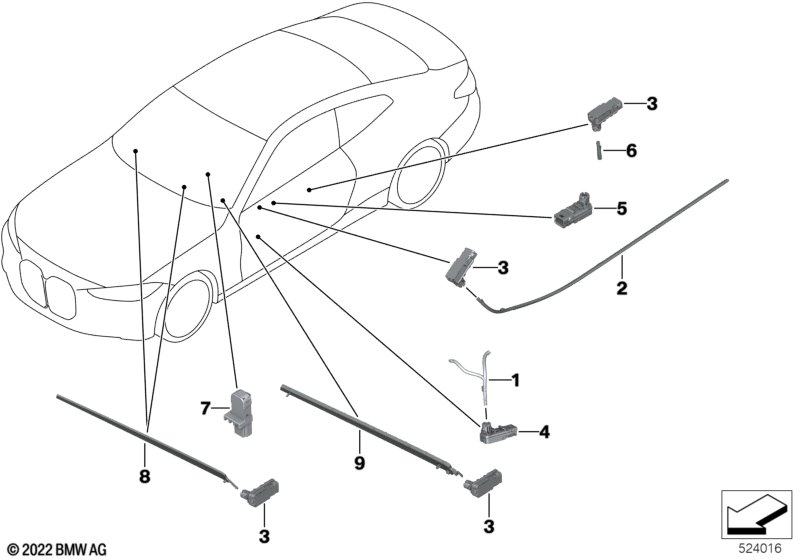

This Fiber-optic cable, door technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Position 2, the fiber-optic conductor cannot be changed, the door opener must be changed ** -> includes fiber-optic conductor |
|||||||||
| Door pocket front door | ||||||||||
| 01 | Fiber-optic cable, door pocket, front LT | 1 | 63316998139 | Shop at ECS Tuning | ||||||
| 01 | Fiber optic cable, door pocket, front RT | 1 | 63316998140 | Shop at ECS Tuning | ||||||
| Fiber-optic conductor outline door | ||||||||||
| 03 | LED module | HELLGRAU | 2 | 63319891436 | Shop at ECS Tuning | |||||
| Door pocket front door | ||||||||||
| 04 | LED module violet | VIOLETT | 2 | 63319891437 | Shop at ECS Tuning | |||||
