Single parts, headlight LED for BMW MINI F56 LCI One (2024)

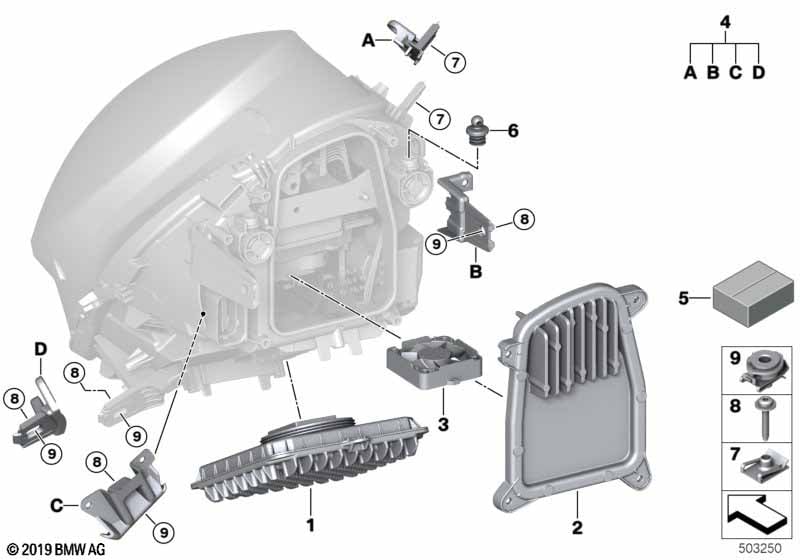

This Single parts, headlight LED technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit for front light electronics | FLE2 | 1 | 63117429125 | Shop at ECS Tuning | |||||
| 02 | LED mod.turn sig./dayti.runn.lights left | 1 | 63118737589 | Shop at ECS Tuning | ||||||
| 02 | LED mod.turn sig./dayti.run.lights right | 1 | 63118737590 | Shop at ECS Tuning | ||||||
| 03 | Fan | 2 | 63117955318 | Shop at ECS Tuning | ||||||
| 04 | Set of mounts for headlights | 1 | 63117383206 | Shop at ECS Tuning | ||||||
| 05 | Set of screws | 1 | 63117388920 | Shop at ECS Tuning | ||||||
| 06 | Locking mechanism | 2 | 63117489213 | Shop at ECS Tuning | ||||||
| 07 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Countersunk screw | M6X35 | 6 | 07119908719 | Shop at ECS Tuning | |||||
| 09 | Alignment element | 6 | 07149310339 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI One Single parts, headlight LED?
- This technical diagram illustrates the Single parts, headlight LED within the Lighting group for the MINI F56 LCI One produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Control unit for front light electronics (Part #63117429125).
- Which models use the hardware listed in this Single parts, headlight LED?
- The hardware and components featured in the Single parts, headlight LED are specific to the MINI F56 LCI One produced during 2024. These technical specifications ensure that parts like the Control unit for front light electronics (63117429125) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, headlight LED assembly?
- Each item in the Single parts, headlight LED corresponds to the numbered list below the illustration. For the MINI F56 LCI One, you can identify the Control unit for front light electronics by locating its position on the schematic, which then links to the official BMW part number 63117429125 for the Lighting section.
