Headlight, electronic parts, Xenon light for BMW 6 Series E64 M6 (2010)

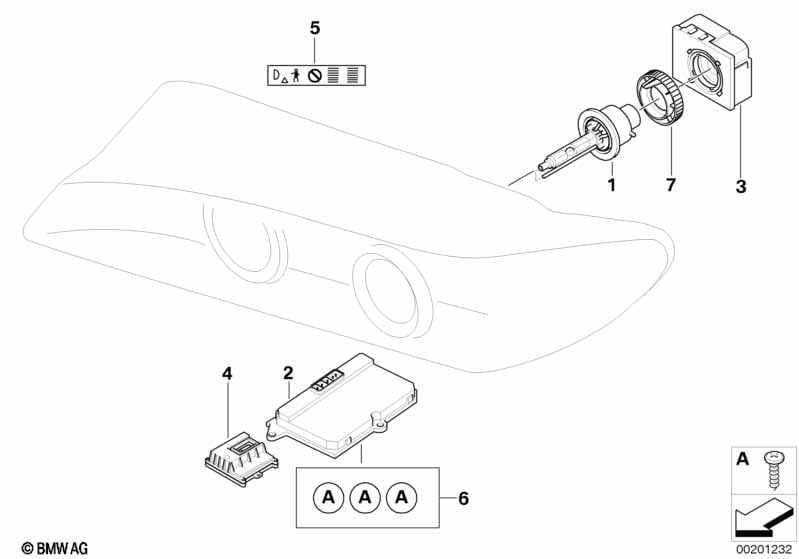

This Headlight, electronic parts, Xenon light technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb Xenon light | D2-S 35W | 2 | 63217160806 | $212.43 | Shop at ECS Tuning | ||||
| 02 | Control unit xenon light | AL | 2 | 63127176068 | $449.90 | Shop at ECS Tuning | ||||
| 02 | Control unit xenon light | 2 | 09/2007 | 63117182520 | $449.90 | Shop at ECS Tuning | ||||
| 03 | Ignition element Xenon-light | AL | 2 | 63126919886 | $104.10 | Shop at ECS Tuning | ||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 04 | Control unit, cornering light, right | 1 | 09/2007 | 63127199362 | $130.78 | Shop at ECS Tuning | ||||
| 04 | Control unit, cornering light, left | 1 | 09/2007 | 63127199361 | $130.78 | Shop at ECS Tuning | ||||
| 05 | Stick-on label xenon-light | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| 06 | Set of screws | 2 | 63117387835 | Shop at ECS Tuning | ||||||
| 07 | Supporting ring f Xenon light bulb | 1 | 63126934755 | $11.23 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 M6 Headlight, electronic parts, Xenon light?
- This technical diagram illustrates the Headlight, electronic parts, Xenon light within the Lighting group for the 6 Series E64 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Bulb Xenon light (Part #63217160806).
- Which models use the hardware listed in this Headlight, electronic parts, Xenon light?
- The hardware and components featured in the Headlight, electronic parts, Xenon light are specific to the 6 Series E64 M6 produced during 2010. These technical specifications ensure that parts like the Bulb Xenon light (63217160806) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight, electronic parts, Xenon light assembly?
- Each item in the Headlight, electronic parts, Xenon light corresponds to the numbered list below the illustration. For the 6 Series E64 M6, you can identify the Bulb Xenon light by locating its position on the schematic, which then links to the official BMW part number 63217160806 for the Lighting section.
