Headlight for BMW 3 Series G20 Sedan LCI M340dX (2025)

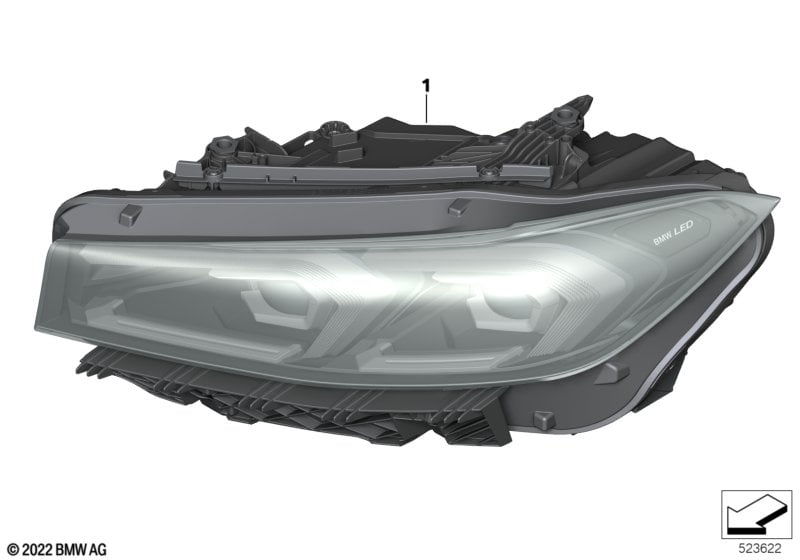

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight |
S3MFA=No S552A=No |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F747 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F748 | Shop at ECS Tuning | ||||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight |
S3MFA=No S552A=Yes |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F755 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F756 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S3MFA=Yes S552A=Yes S8LHA=Yes |
|||||||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886935 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886936 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886941 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886942 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S3MFA=Yes S552A=Yes S8LHA=No |
|||||||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886935 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886936 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886941 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886942 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No S3MFA=Yes S552A=Yes S8LHA=Yes |
|||||||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886935 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886936 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886941 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886942 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No S3MFA=Yes S552A=Yes S8LHA=No |
|||||||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886933 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886934 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL left | SHADOW-LINE | 1 | 63117886939 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | SHADOW-LINE | 1 | 63117886940 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S3MFA=No S552A=No S8LHA=Yes |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F751 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F752 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S3MFA=No S552A=No S8LHA=No |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F751 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F752 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No S3MFA=No S552A=No S8LHA=Yes |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F751 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F752 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S3MFA=No S552A=Yes S8LHA=Yes |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F757 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F758 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes S3MFA=No S552A=Yes S8LHA=No |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F757 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F758 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No S3MFA=No S552A=Yes S8LHA=Yes |
|||||||||
| 01 | LED headlight left | 1 | 63115A4F757 | Shop at ECS Tuning | ||||||
| 01 | LED headlight right | 1 | 63115A4F758 | Shop at ECS Tuning | ||||||
