Single components for headlight for BMW 3 Series G21 Touring LCI M340dX (2024)

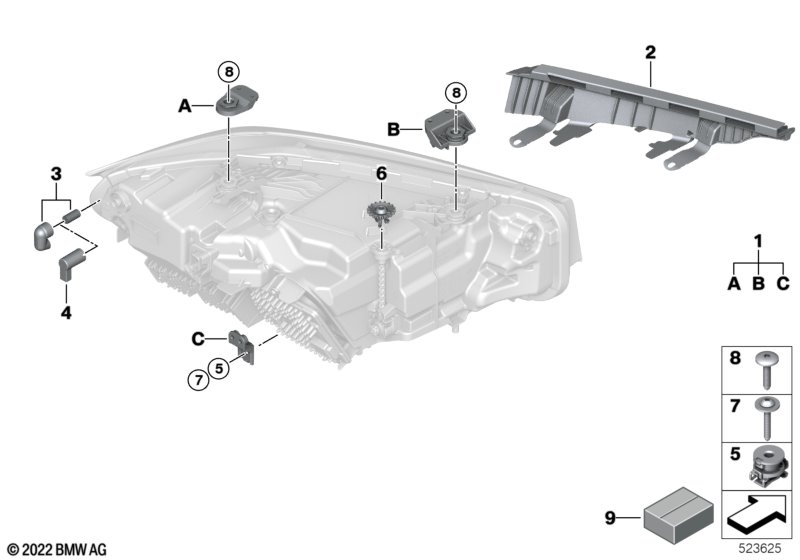

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| incl. screws | ||||||||||
| 01 | Repair kit headlight | 1 | 63115A4F719 | Shop at ECS Tuning | ||||||
| 02 | Bracket headlight left | 1 | 63115A4F767 | Shop at ECS Tuning | ||||||
| 02 | Bracket headlight right | 1 | 63115A4F768 | Shop at ECS Tuning | ||||||
| 03 | Set grommets | 1 | 63117441312 | Shop at ECS Tuning | ||||||
| 04 | Grommet left | 1 | 63115A637B1 | Shop at ECS Tuning | ||||||
| 04 | Grommet right | 1 | 63115A637B2 | Shop at ECS Tuning | ||||||
| 05 | Spacer | 1 | 63117419740 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M6 X 46 | 2 | 07147401706 | Shop at ECS Tuning | |||||
| 08 | Lens screw with base | M6 X19 | 4 | 07149353144 | Shop at ECS Tuning | |||||
| 09 | Set of screws | 1 | 63119879866 | Shop at ECS Tuning | ||||||
